Components [09/2015 - ]

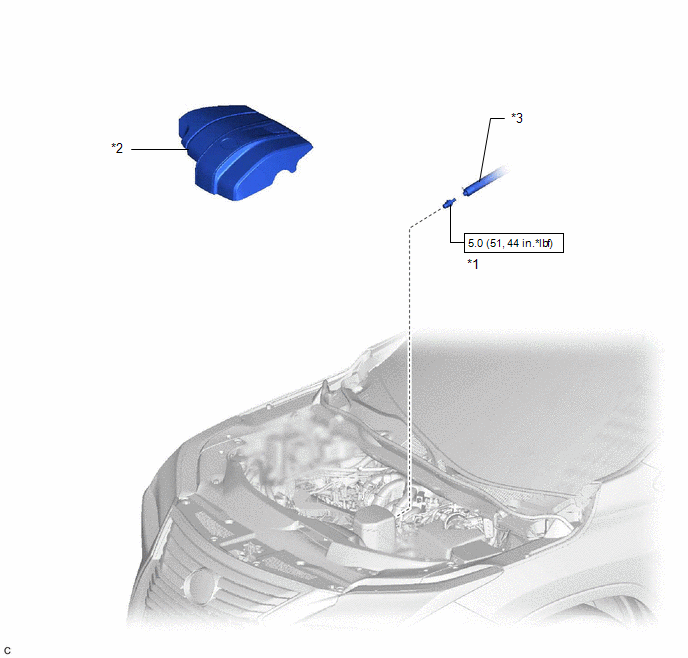

Fig 1: PCV Valve Replacement Components With Torque Specifications
GTY636480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) *2 V-BANK COVER SUB-ASSEMBLY
*3 VENTILATION HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque - -
