Components [09/2015 - 12/2017]

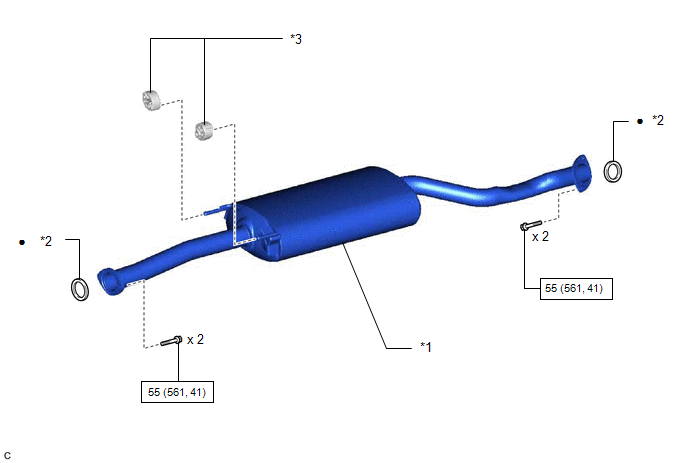

Fig 1: Canister Replacement Components With Torque Specifications [09/2015 - 12/2017] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	TAIL EXHAUST PIPE ASSEMBLY	*2	EXHAUST PIPE GASKET
*3	EXHAUST PIPE SUPPORT	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

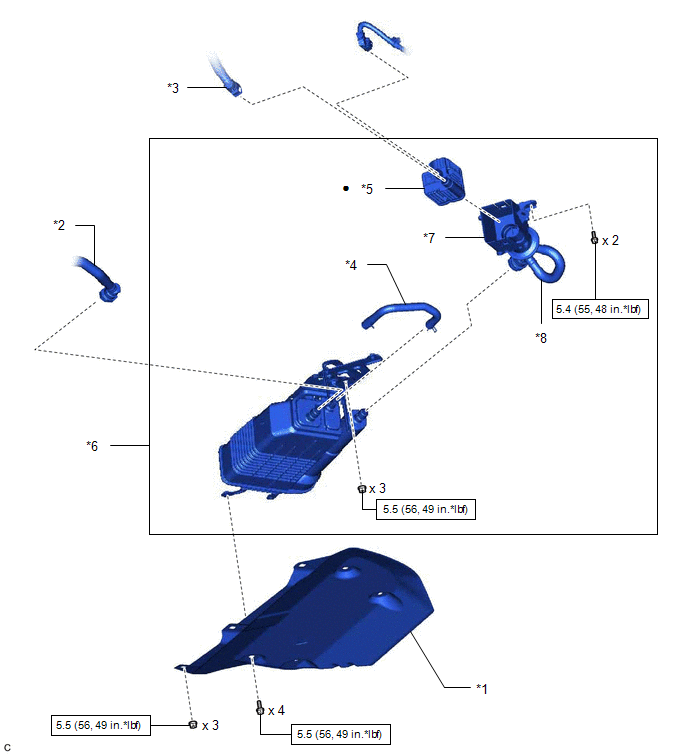

Fig 2: Canister Replacement Components With Torque Specifications [09/2015 - 12/2017] (2 Of 2)

Callout	Description	Callout	Description
*1	CHARCOAL CANISTER PROTECTOR	*2	VENT LINE HOSE
*3	AIR LINE TUBE	*4	PURGE LINE HOSE
*5	CHARCOAL CANISTER LEAK DETECTION PUMP SUB-ASSEMBLY	*6	CANISTER (CHARCOAL CANISTER ASSEMBLY)
*7	NO. 1 CHARCOAL CANISTER FILTER	*8	FUEL TANK VENT HOSE SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
