Components [07/2020 - ]

Fig 1: Steering Wheel Replacement Components With Torque Specifications [07/2020 - ] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	STEERING WHEEL ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 2: Steering Wheel Replacement Components With Torque Specifications [07/2020 - ] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	STEERING PAD SWITCH ASSEMBLY	*2	CRUISE CONTROL MAIN SWITCH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

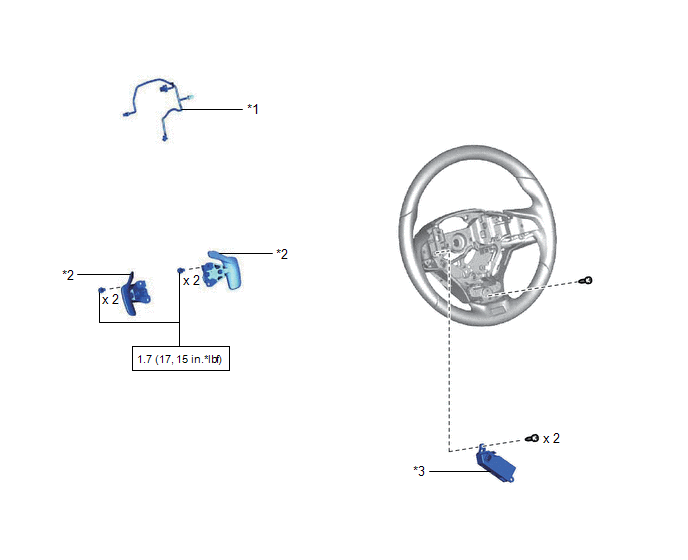

Fig 3: Steering Wheel Replacement Components With Torque Specifications [07/2020 - ] (3 Of 3)

Callout	Description	Callout	Description
*1	NO. 1 SWITCH WIRE	*2	SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)
*3	STEERING VIBRATION AND HEATER ECU	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
*	Precoated Part	-	-
