Components [09/2015 - ]

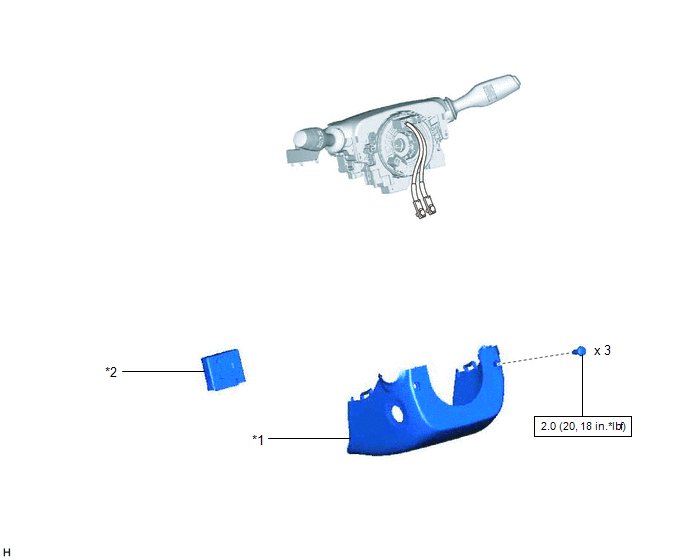

Fig 1: Multiplex Tilt And Telescopic ECU Replacement Components With Torque Specifications
GTY663986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 LOWER STEERING COLUMN COVER *2 MULTIPLEX TILT AND TELESCOPIC ECU
N*m (kgf*cm, ft.*lbf): Specified torque - -
