Removal [08/2016 - 12/2017]: Procedure
- REMOVE TONNEAU COVER ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE REAR NO. 3 FLOOR BOARD
Refer to PROCEDURE - Step 3
- REMOVE REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 4
- REMOVE REAR NO. 4 FLOOR BOARD
Refer to PROCEDURE - Step 5
- REMOVE DECK SIDE TRIM BOX RH
Refer to PROCEDURE - Step 7
- REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 8
- REMOVE REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 11
- REMOVE REAR SEAT ASSEMBLY RH
Refer to REMOVAL [08/2016 - 08/2019]
- REMOVE UPPER QUARTER TRIM PAD RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 23
- REMOVE REAR SEAT SIDE GARNISH RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 24
- REMOVE REAR FLOOR FINISH SIDE PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 25
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Refer to PROCEDURE - Step 34
- REMOVE ROPE HOOK ASSEMBLY
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 27
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE RECLINING REMOTE CONTROL BEZEL RH (w/o Rear Power Seat System)
Refer to PROCEDURE - Step 37
- REMOVE FOLD SEAT SWITCH ASSEMBLY (w/ Rear Power Seat System)
Refer to PROCEDURE - Step 5
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
Refer to PROCEDURE - Step 39
- REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 30

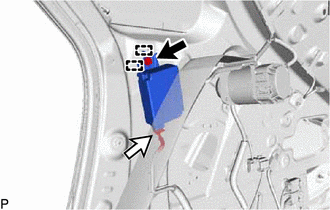

- REMOVE ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER NOTE:
- Do not drop the electrical key and tire pressure warning ECU and receiver, strike it with tools or subject it to impact.
- If the electrical key and tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.
