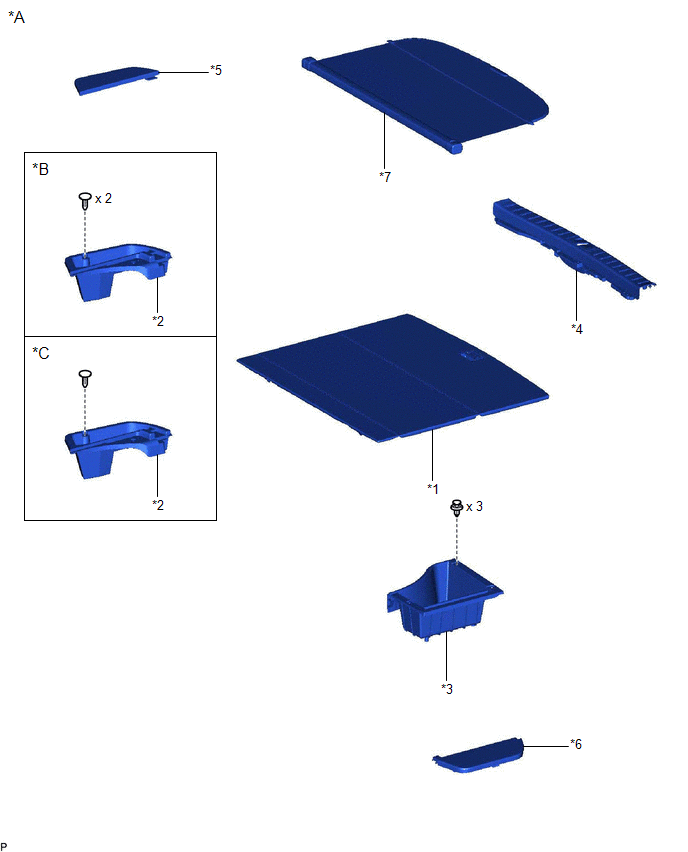

Components [12/2017 - ]
| *A | w/o Rear No. 2 Seat | *B | for TMC Made |
| *C | for TMMC Made | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK SIDE TRIM BOX RH |
| *3 | REAR DECK FLOOR BOX | *4 | REAR FLOOR FINISH PLATE |
| *5 | REAR NO. 3 FLOOR BOARD | *6 | REAR NO. 4 FLOOR BOARD |
| *7 | TONNEAU COVER ASSEMBLY | - | - |

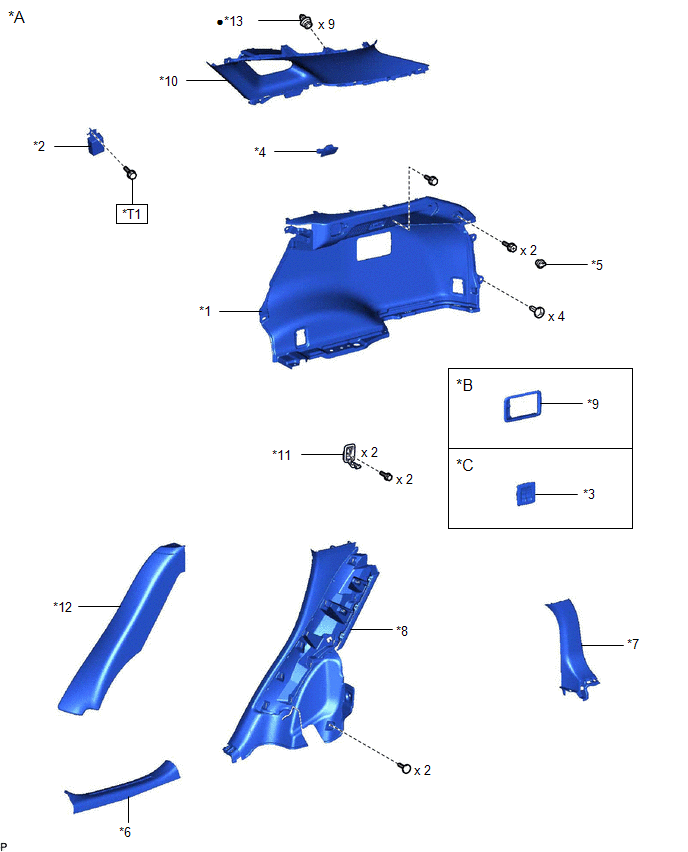

| *A | w/o Rear No. 2 Seat | *B | w/o Rear Power Seat System |
| *C | w/ Rear Power Seat System | - | - |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER |
| *3 | FOLD SEAT SWITCH ASSEMBLY | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *6 | REAR DOOR SCUFF PLATE RH |
| *7 | REAR FLOOR FINISH SIDE PLATE RH | *8 | REAR SEAT SIDE GARNISH RH |
| *9 | RECLINING REMOTE CONTROL BEZEL RH | *10 | ROOF SIDE INNER GARNISH ASSEMBLY RH |
| *11 | ROPE HOOK ASSEMBLY | *12 | UPPER QUARTER TRIM PAD RH |
| *13 | CLIP | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| *T1 | for Type A: 8.3 (85, 73 in.*lbf) for Type B: 10 (102, 7) |
- | - |

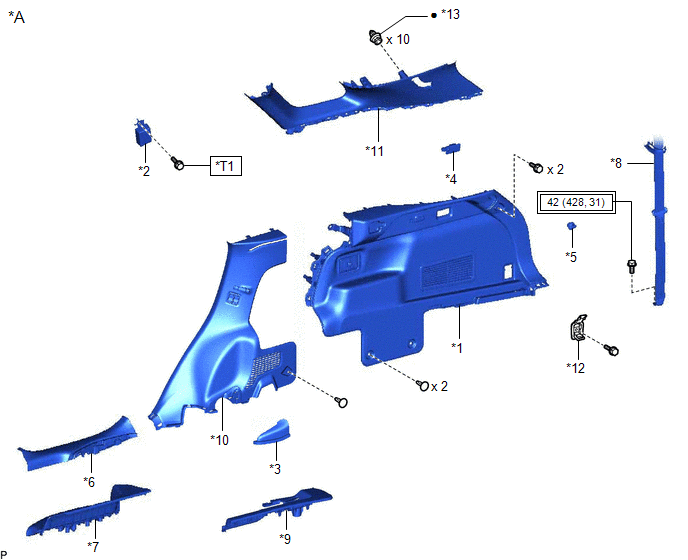

Fig 3: Door Control Receiver Replacement Components With Torque Specifications (3 Of 3) [12/2017 - ]
| Callout | Description | Callout | Description |
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER |
| *3 | FRONT DECK SIDE TRIM COVER RH | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *6 | REAR DOOR INSIDE SCUFF PLATE RH |
| *7 | REAR DOOR SCUFF PLATE RH | *8 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH |
| *9 | REAR SEAT OUTER TRACK BRACKET COVER RH | *10 | REAR SEAT SIDE GARNISH RH |
| *11 | ROOF SIDE INNER GARNISH ASSEMBLY RH | *12 | ROPE HOOK ASSEMBLY |
| *13 | CLIP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | - | - |
| *T1 | for Type A: 8.3 (85, 73 in.*lbf) for Type B: 10 (102, 7) |
- | - |
