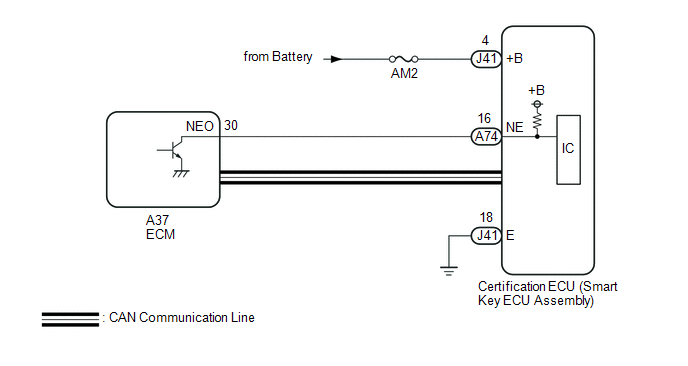

DTC B2286: Runnable Signal Malfunction; DTC P0335: Crankshaft Position Sensor Circuit Malfunction (NE Signal) [09/2015 - ]: Wiring Diagram

GTY651973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
