Components [08/2016 - 01/2023]

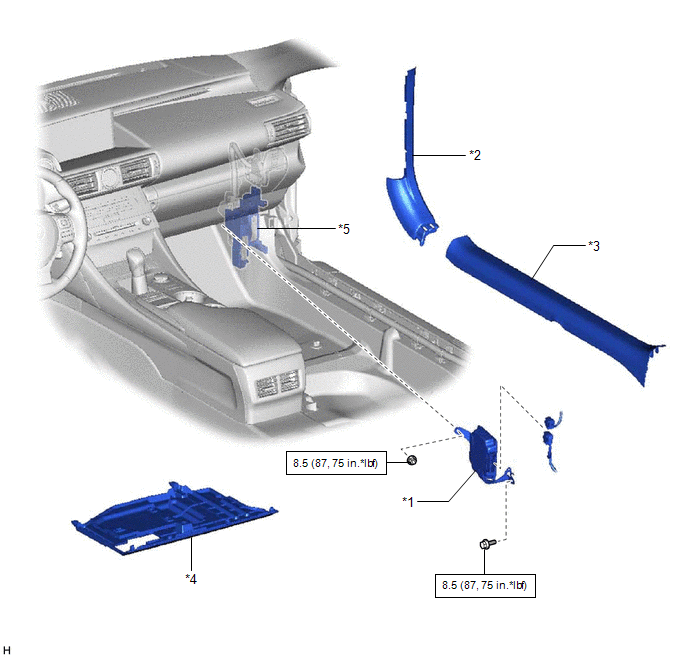

Fig 1: Suspension Control ECU Replacement Components With Torque Specification [08/2016 - 01/2023]
GTY646319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ABSORBER CONTROL ECU *2 FRONT DOOR OPENING TRIM COVER RH
*3 FRONT DOOR SCUFF PLATE RH *4 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*5 CONNECTOR HOLDER - -
N.m (kgf/cm, ft.lbf): Specified torque - -
