Removal [09/2014 - 11/2017]: Procedure

  1. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY

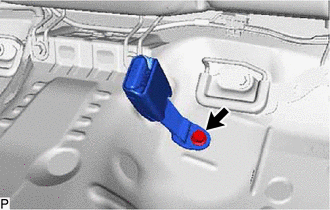

    1. Remove the bolt and rear No. 1 seat inner belt assembly.
      GTY513107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
