Vehicle Identification And Serial Numbers [09/2014 - ]

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.

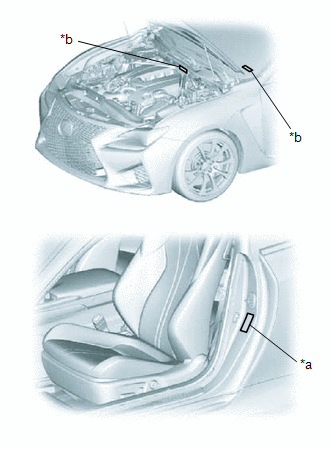

      Fig 1: View Of Vehicle Identification And Serial Numbers
      GTY509741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Certification Label
      *b Vehicle Identification Number
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

      A label with the engine serial number is applied to the intake air surge tank as shown in the illustration.

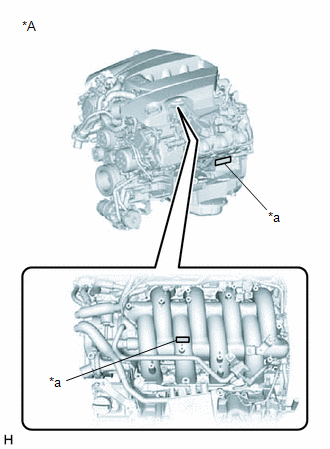

      Fig 2: Engine Serial Number Location
      GTY504540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A 2UR-GSE
      *a Engine Serial Number
    2. The transmission serial number is stamped on the transmission case as shown in the illustration.

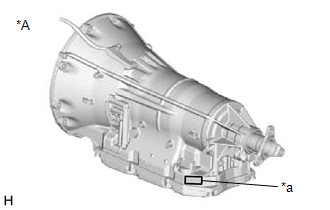

      Fig 3: Transmission Serial Number Location
      GTY505405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A AA80E
      *a Transmission Serial Number
