Components [09/2014 - 03/2019]

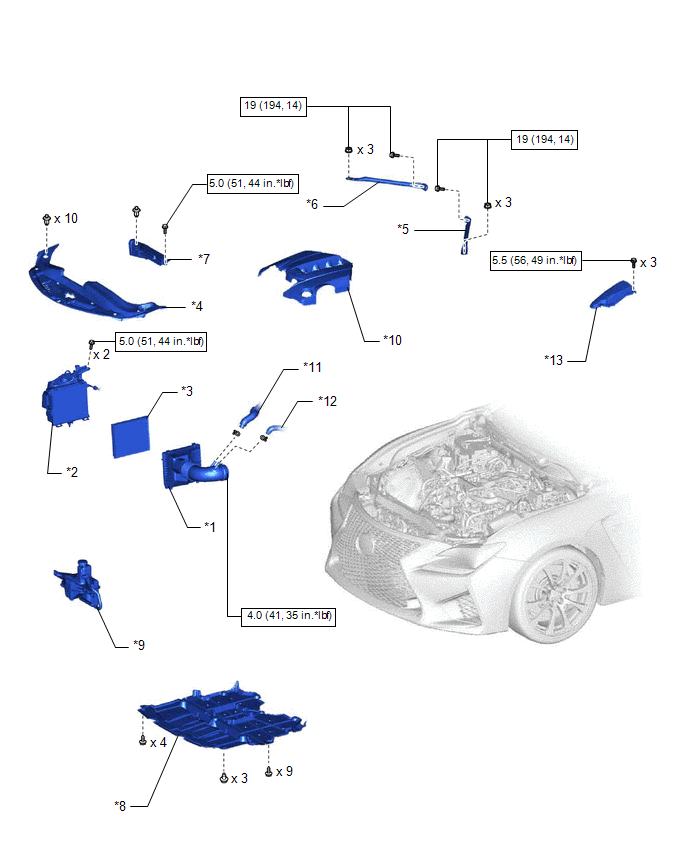

Fig 1: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	AIR CLEANER CASE SUB-ASSEMBLY
*3	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	*4	COOL AIR INTAKE DUCT SEAL
*5	FRONT SUSPENSION UPPER TO COWL BRACE LH	*6	FRONT SUSPENSION UPPER TO COWL BRACE RH
*7	INLET NO. 1 AIR CLEANER	*8	NO. 1 ENGINE UNDER COVER ASSEMBLY
*9	RADIATOR RESERVE TANK ASSEMBLY	*10	V-BANK COVER SUB-ASSEMBLY
*11	NO. 2 VENTILATION HOSE	*12	NO. 3 VENTILATION HOSE
*13	ENGINE ROOM ECU COVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

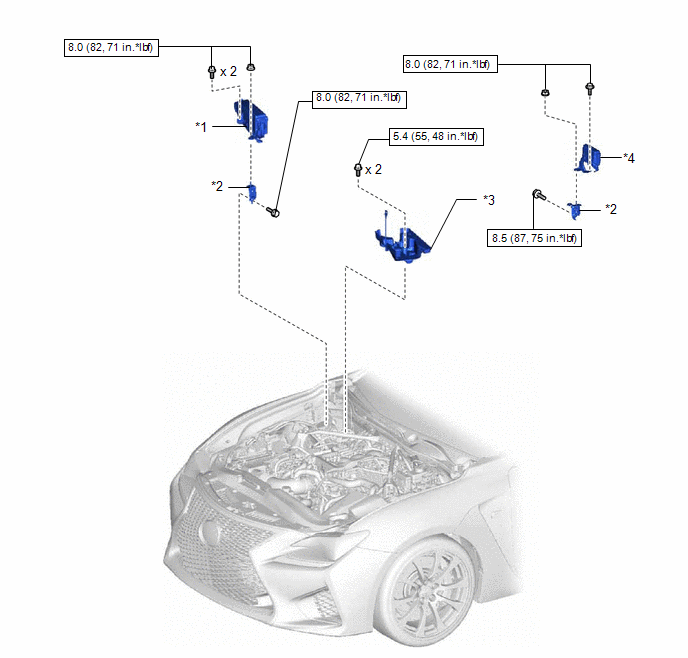

Fig 2: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY	*2	WIRE HARNESS CLAMP BRACKET
*3	BATTERY TRAY	*4	NO. 3 ENGINE ROOM RELAY BLOCK ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

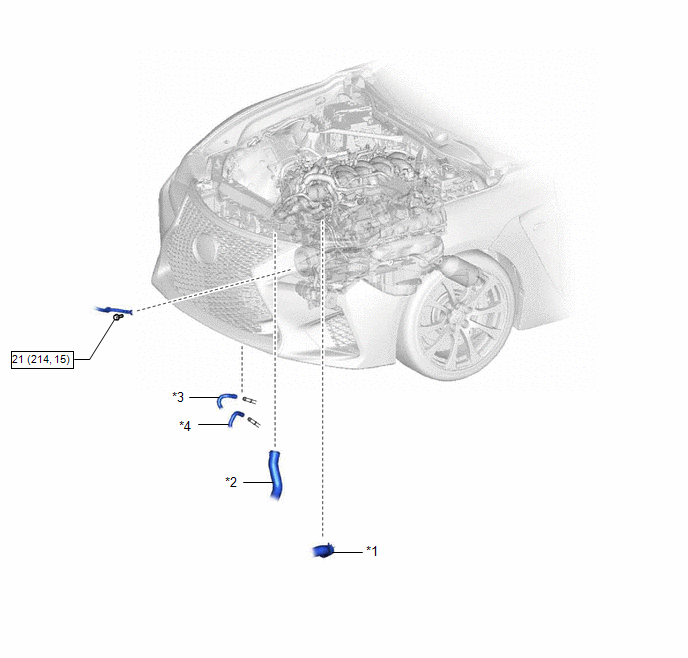

Fig 3: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 RADIATOR HOSE	*2	NO. 2 RADIATOR HOSE
*3	NO. 2 OIL COOLER INLET HOSE	*4	NO. 2 OIL COOLER OUTLET HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

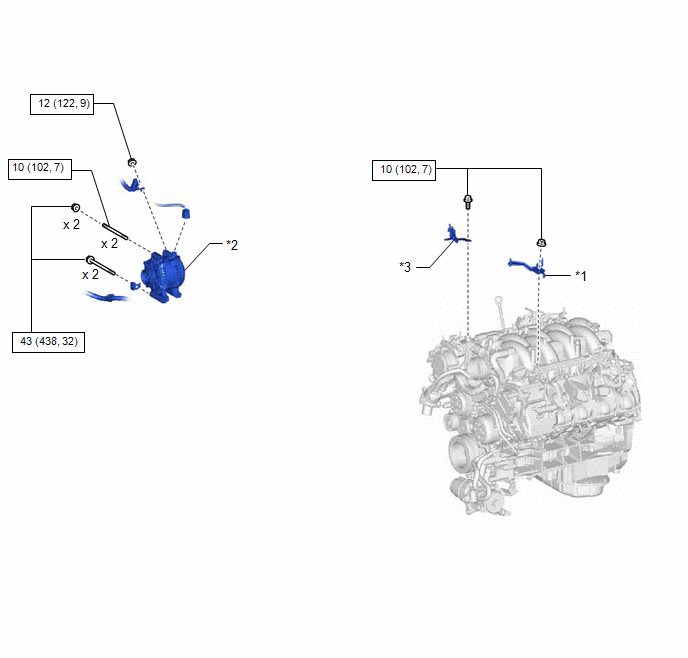

Fig 4: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 4 V-BANK COVER BRACKET SUB-ASSEMBLY	*2	GENERATOR ASSEMBLY
*3	NO. 3 V-BANK COVER BRACKET SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

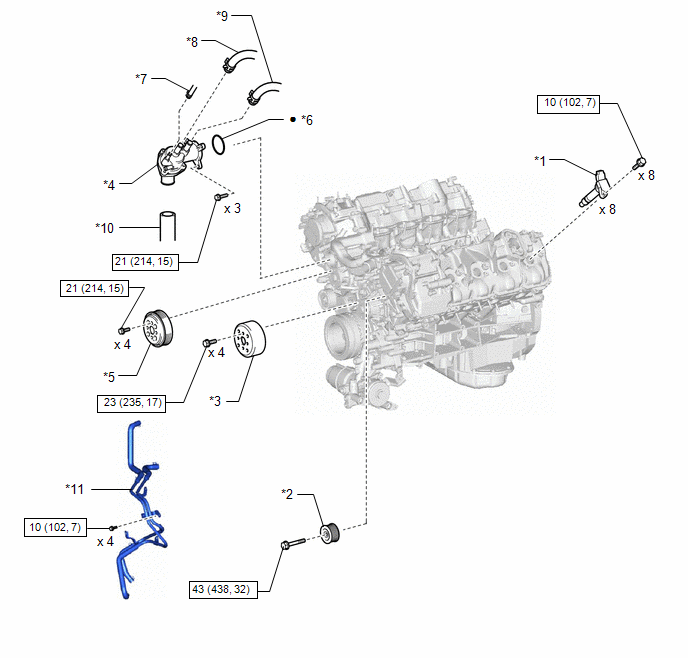

Fig 5: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	IGNITION COIL ASSEMBLY	*2	NO. 2 IDLER PULLEY SUB-ASSEMBLY
*3	OIL PUMP DRIVE SHAFT PULLEY	*4	WATER INLET HOUSING
*5	WATER PUMP PULLEY	*6	GASKET
*7	NO. 5 WATER BY-PASS HOSE	*8	WATER INLET HOSE
*9	NO. 3 WATER BY-PASS HOSE	*10	NO. 2 RADIATOR HOSE
*11	NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

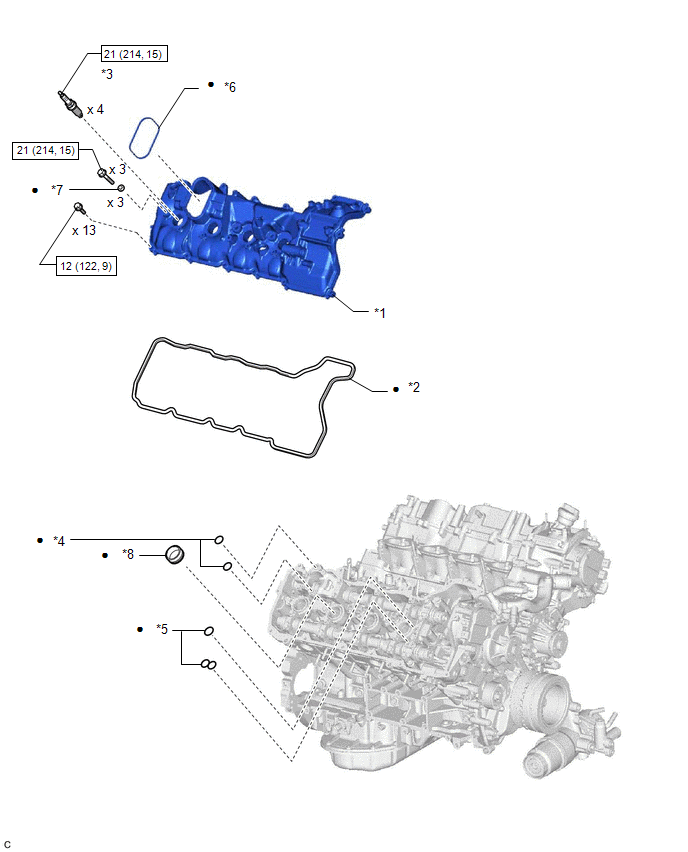

Fig 6: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CYLINDER HEAD COVER SUB-ASSEMBLY LH	*2	CYLINDER HEAD COVER GASKET LH
*3	SPARK PLUG	*4	O-RING
*5	OIL HOLE GASKET	*6	FUEL PUMP SPACER GASKET
*7	SEAL WASHER	*8	SPARK PLUG TUBE GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

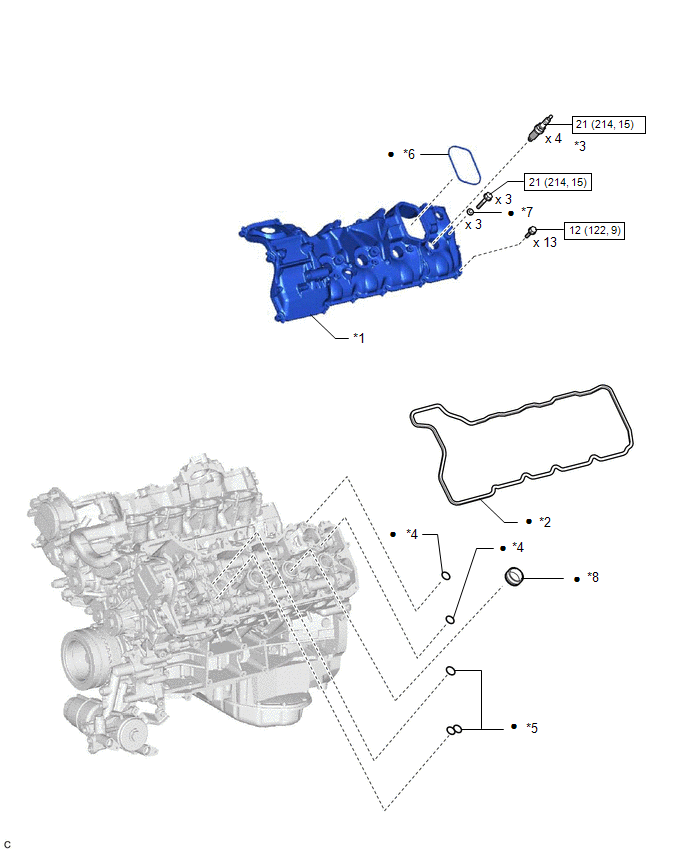

Fig 7: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CYLINDER HEAD COVER SUB-ASSEMBLY	*2	CYLINDER HEAD COVER GASKET
*3	SPARK PLUG	*4	O-RING
*5	OIL HOLE GASKET	*6	FUEL PUMP SPACER GASKET
*7	SEAL WASHER	*8	SPARK PLUG TUBE GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

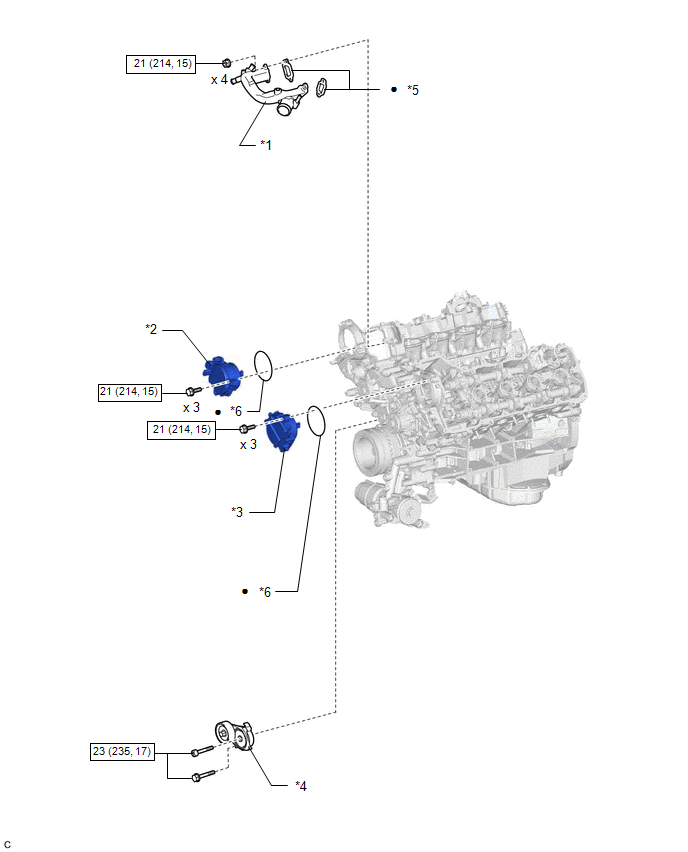

Fig 8: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (8 Of 11)

*1	FRONT WATER BY-PASS JOINT	*2	CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY RH
*3	CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY LH	*4	V-RIBBED BELT TENSIONER ASSEMBLY
*5	GASKET	*6	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

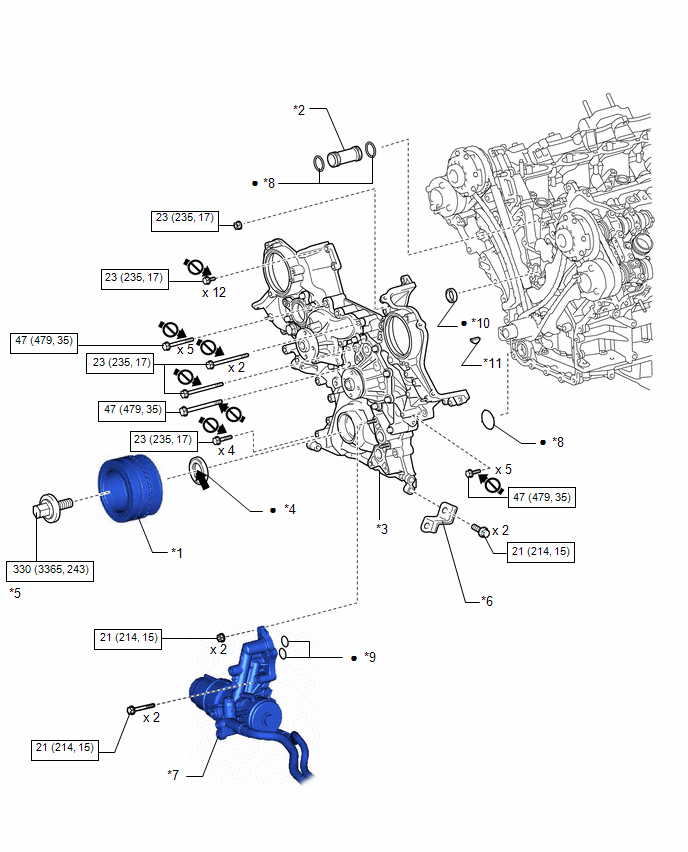

Fig 9: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (9 Of 11)

*1	CRANKSHAFT PULLEY	*2	INLET WATER PIPE
*3	TIMING CHAIN COVER ASSEMBLY	*4	TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
*5	CRANKSHAFT PULLEY SET BOLT	*6	OIL FILTER BRACKET STAY
*7	OIL FILTER BRACKET	*8	O-RING
*9	GASKET	*10	OIL PUMP GASKET
*11	CRANKSHAFT TIMING GEAR KEY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP Grease		Do not apply lubricants to the threaded parts

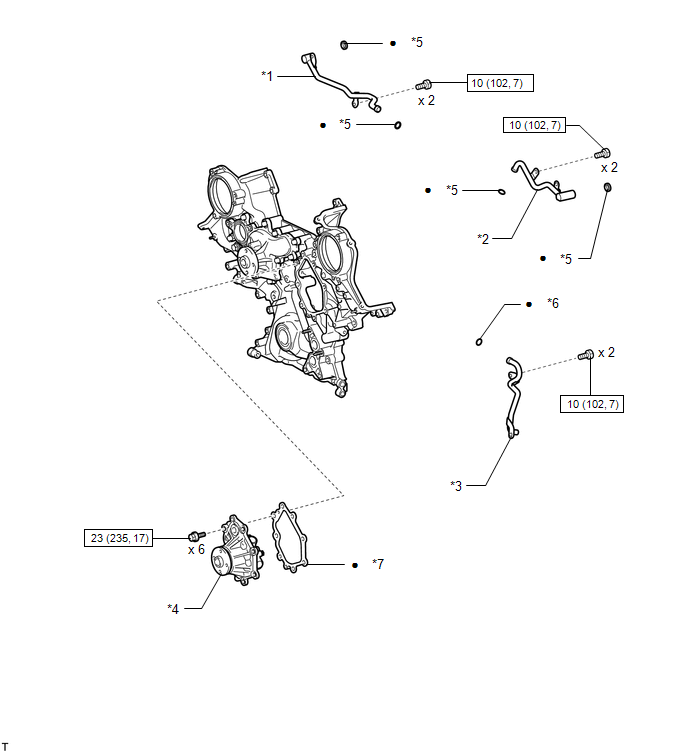

Fig 10: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (10 Of 11)

*1	NO. 1 OIL PIPE	*2	NO. 2 OIL PIPE
*3	NO. 3 OIL PIPE	*4	SCAVENGING PUMP ASSEMBLY
*5	OIL PIPE SEAL	*6	O-RING
*7	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

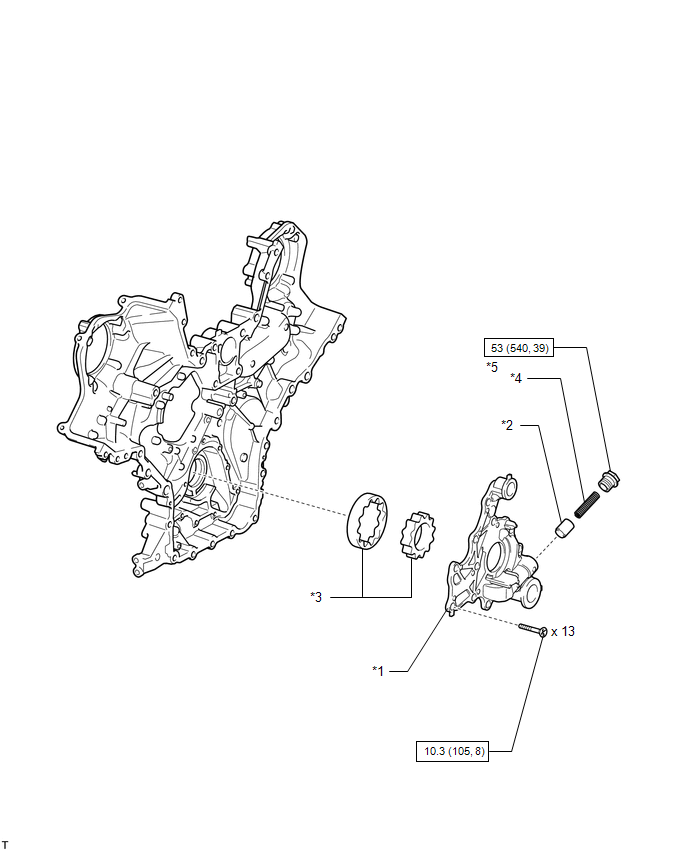

Fig 11: Oil Pump Replacement Components With Torque Specifications [09/2014 - 03/2019] (11 Of 11)

*1	OIL PUMP COVER	*2	OIL PUMP RELIEF VALVE
*3	OIL PUMP ROTOR SET	*4	OIL PUMP RELIEF VALVE SPRING
*5	OIL PUMP RELIEF VALVE PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
