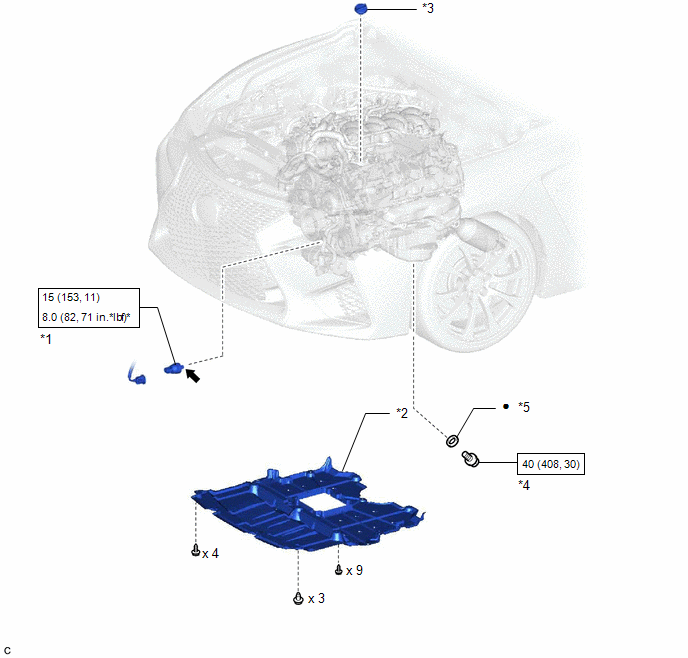

Components [09/2014 - ]
| *1 | ENGINE OIL PRESSURE SWITCH ASSEMBLY | *2 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *3 | OIL FILLER CAP SUB-ASSEMBLY | *4 | OIL PAN DRAIN PLUG |
| *5 | GASKET | - | - |
| N.m (kgf/cm, ft*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | Adhesive 1324 | |
| * | Precoated part | - | - |
