Removal [09/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 3 [03/2019 - ]

  4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 4 [03/2019 - ]

  5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 5 [03/2019 - ]

  6. REMOVE DOOR TRIM COVER

    Refer to PROCEDURE - Step 6 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 6 [03/2019 - ]

  7. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - ]

  8. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 8 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 8 [03/2019 - ]

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 9 [03/2019 - ]

  10. REMOVE FRONT DOOR TRIM BRACKET

    Refer to PROCEDURE - Step 20 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 19 [03/2019 - ]

  11. REMOVE OUTER MIRROR INSTALL HOLE COVER

    Refer to PROCEDURE - Step 11 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 11 [03/2019 - ]

  12. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 22 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 21 [03/2019 - ]

  13. REMOVE FRONT DOOR UPPER WINDOW STOP

    Refer to PROCEDURE - Step 23 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 22 [03/2019 - ]

  14. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 23 [03/2019 - ]

  15. REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY

    Refer to PROCEDURE - Step 25 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 24 [03/2019 - ]

  16. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY

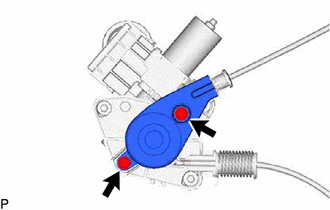

    1. Remove the 2 bolts and housing cap.
      GTY516976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

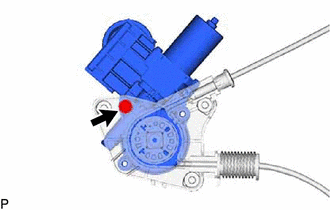

    2. Remove the bolt and power window regulator motor assembly.
      GTY516975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
