Removal [09/2014 - ]: Procedure

  1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 4 [03/2019 - ]

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

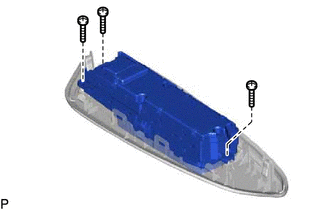

    1. Remove the 3 screws.
      GTY516433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

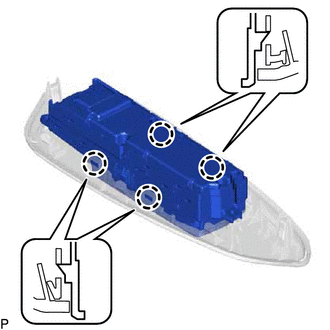

    2. Disengage the 4 claws to remove the multiplex network master switch assembly from the front door armrest base panel.
      GTY516434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
