System Diagram [01/2023 - ]

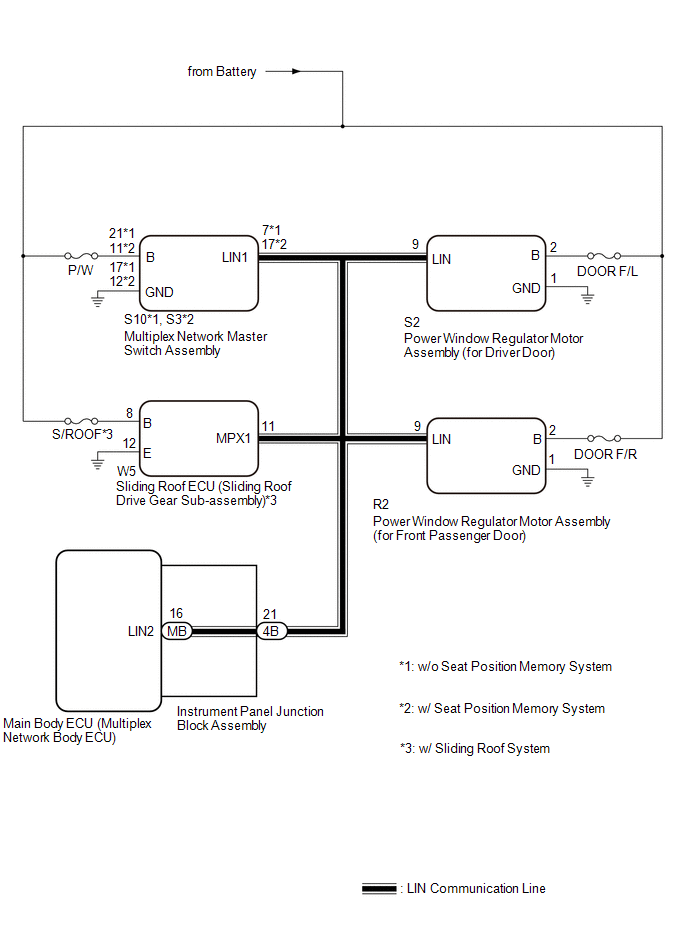

  1. DOOR BUS LINES
    GTY508163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES
    GTY1138170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
