Can Communication System - Diagnostic Codes (2 Of 3)
>>
Can Communication System
>>
DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [11/2017 - 03/2019]
>>

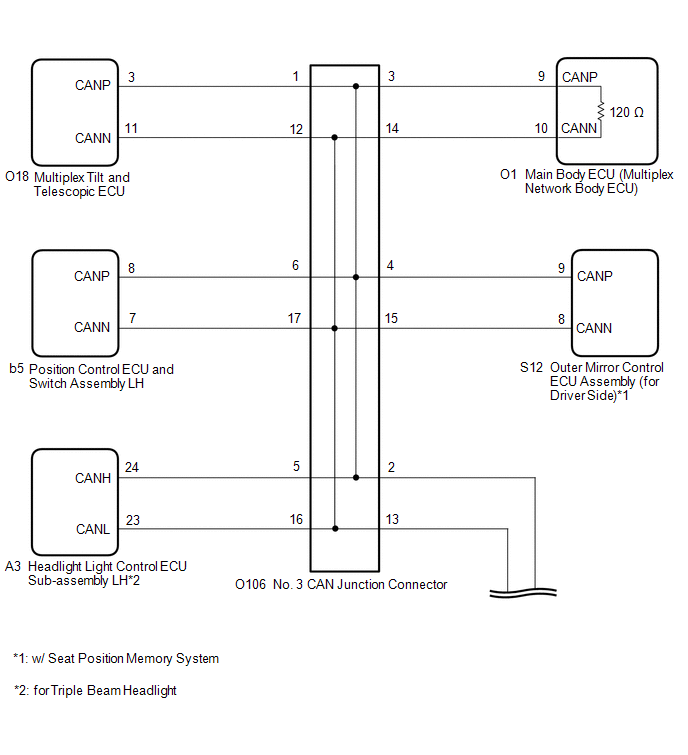

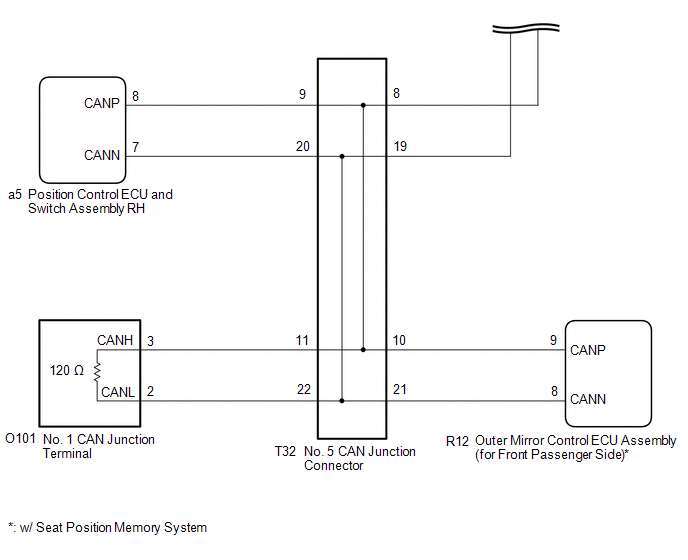

Wiring Diagram
DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [11/2017 - 03/2019]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
