Parts Location [09/2014 - 01/2023]: Illustration

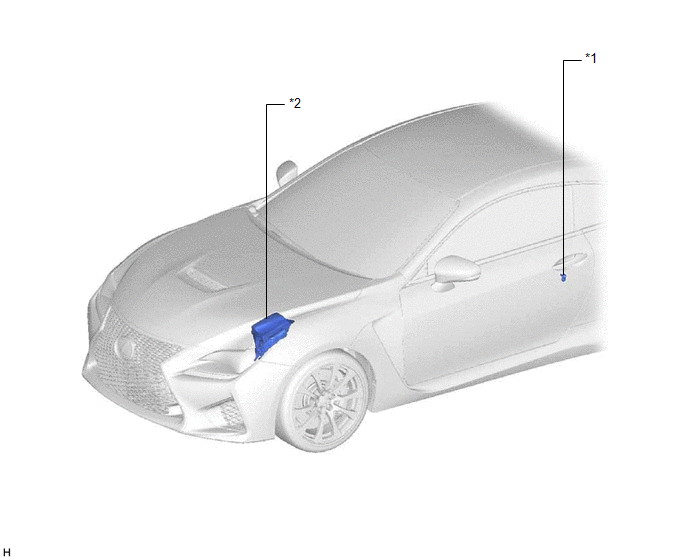

Fig 1: Steering Lock System Components Location (1 Of 2) [09/2014 - 01/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)

*2

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - IG2 RELAY - IG2-MAIN FUSE

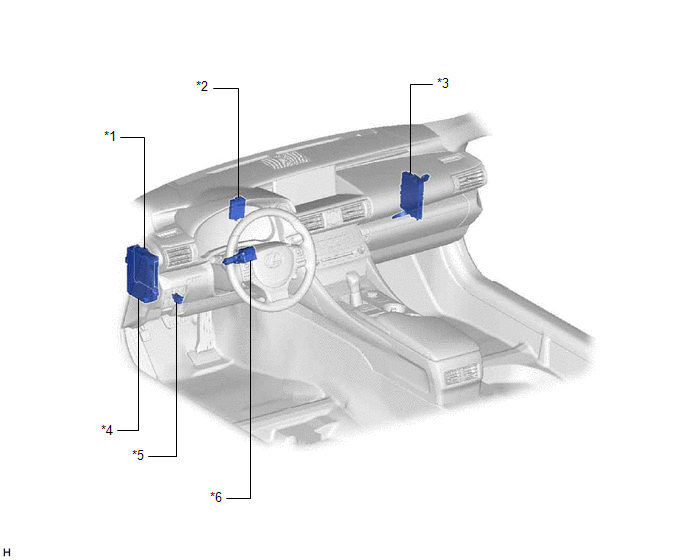

Fig 1: Steering Lock System Components Location (2 Of 2) [09/2014 - 01/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	ID CODE BOX (IMMOBILISER CODE ECU)
*3	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IGN NO. 2 FUSE - STRG LOCK FUSE
*5	DLC3	*6	STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY)
