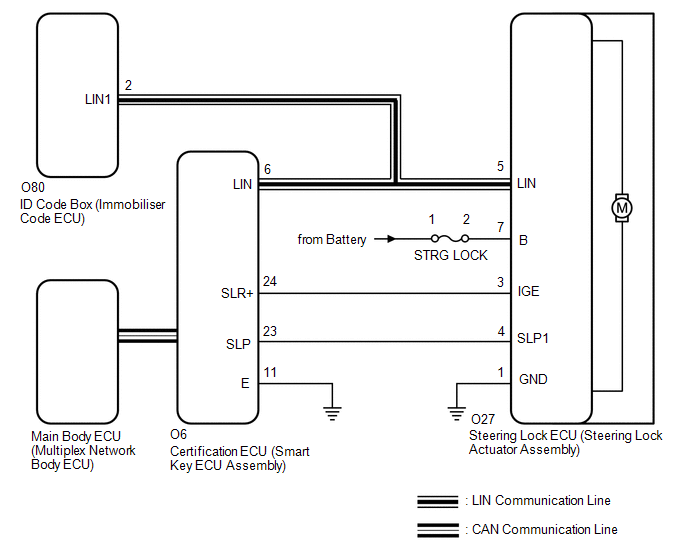

Unable to Unlock Steering Wheel (Engine cannot Start) [09/2014 - 01/2023]: Wiring Diagram

GTY516059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
