Components [09/2014 - ]

Fig 1: Tilt And Telescopic Manual Switch Replacement Components With Torque Specifications (1 Of 2)
GTY516656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING WHEEL ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -

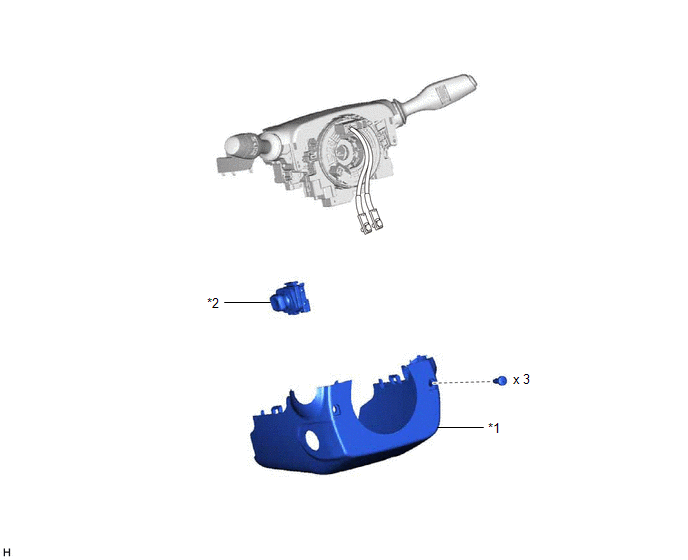

Fig 2: Tilt And Telescopic Manual Switch Replacement Components (2 Of 2)
GTY503906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING COLUMN COVER *2 TILT AND TELESCOPIC SWITCH
