Removal [09/2014 - 11/2017]: Procedure

Refer to REMOVAL [09/2014 - ]

1. Disconnect each connector from the spiral cable with sensor sub-assembly.
2. w/ Steering Heater:

   1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector from the steering wheel heater control assembly.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   Remove the steering wheel assembly set nut.

4. Put matchmarks on the steering wheel assembly and steering main shaft.

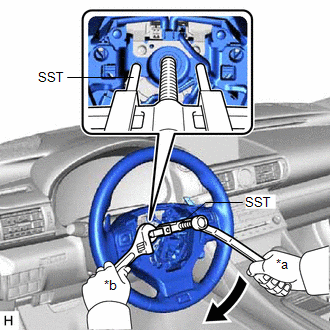

5. Using SST, remove the steering wheel assembly.
   • SST: 09950-50013
     1. 09951-05010
     2. 09952-05010
     3. 09953-05020
     4. 09954-05070

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

   NOTE:

   Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

See step  2

Refer to PROCEDURE - Step 2

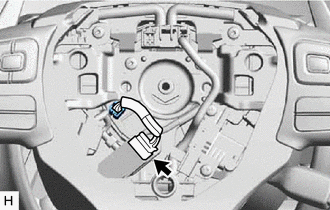

1. Remove the cruise control switch wire.

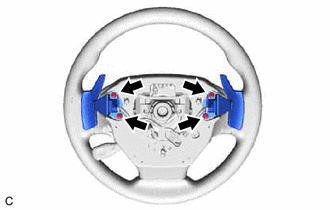

1. Remove the 4 screws, and separate the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

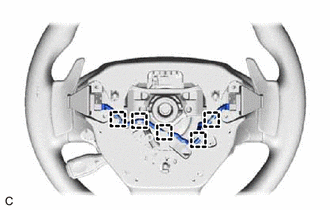

   Disengage the 5 guides to remove the 2 shift paddle switches (transmission shift switch assemblies) with No. 1 switch wire from the steering wheel assembly.

See step  2

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

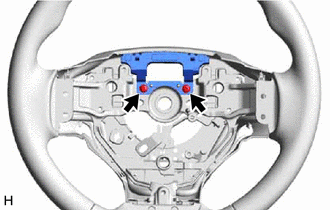

   Remove the 2 screws and steering shake damper from the steering wheel sub-assembly.
