Removal [09/2014 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 1 [03/2019 - ]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 2 [09/2014 - 01/2023] , or refer to PROCEDURE - Step 2 [03/2019 - ]

  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 3 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 3 [03/2019 - ]

  4. REMOVE FRONT PANEL GARNISH LH

    Refer to PROCEDURE - Step 4 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 4 [03/2019 - ]

  5. REMOVE FRONT PANEL GARNISH RH

    Refer to PROCEDURE - Step 5 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 5 [03/2019 - ]

  6. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 8 [03/2019 - ]

  7. REMOVE STEERING HEATER SWITCH (REFRESHING SEAT SWITCH)

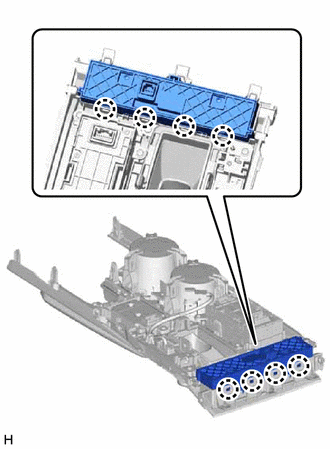

    1. GTY504608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 8 claws to remove the steering heater switch (refreshing seat switch) from the console panel sub-assembly.
