Components [09/2014 - 01/2023]

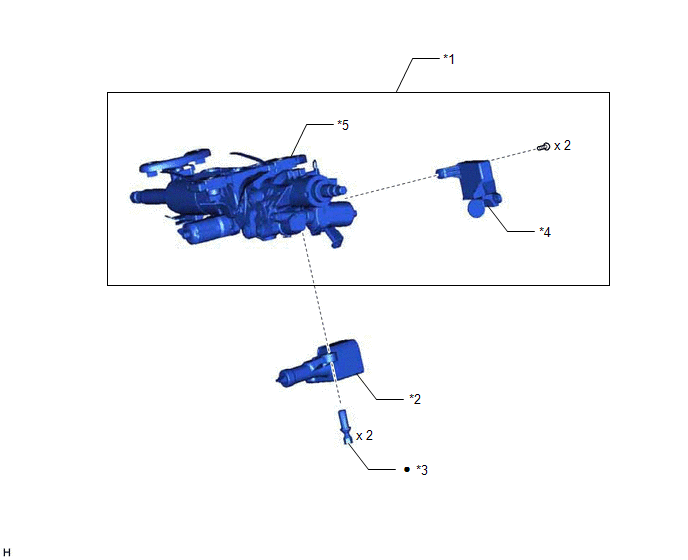

Fig 1: Multiplex Tilt And Telescopic ECU Replacement Components [09/2014 - 01/2023]
GTY468102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING COLUMN ASSEMBLY *2 STEERING LOCK ACTUATOR ASSEMBLY
*3 STEERING LOCK SET BOLT *4 MULTIPLEX TILT AND TELESCOPIC ECU
*5 TILT STEERING GEAR WITH MOTOR ASSEMBLY - -
• Non-reusable part - -
