Components [01/2023 - ]

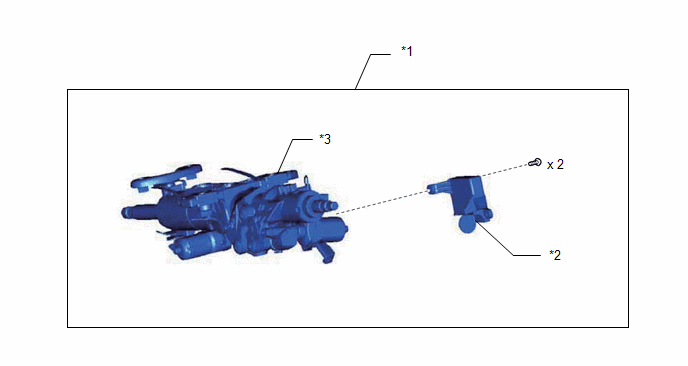

Fig 1: Multiplex Tilt And Telescopic ECU Replacement Components [01/2023 - ]
GTY1175860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING COLUMN ASSEMBLY *2 MULTIPLEX TILT AND TELESCOPIC ECU
*3 TILT STEERING GEAR WITH MOTOR ASSEMBLY *4
