Removal [11/2017 - ]: Procedure

  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [11/2017 - ]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

    Refer to PROCEDURE - Step 2

  3. REMOVE STEERING PAD SWITCH ASSEMBLY

    See step  3

  4. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

    Refer to PROCEDURE - Step 2

  5. REMOVE STEERING VIBRATION AND HEATER ECU

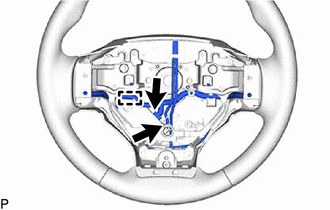

    1. Disengage the guide to remove the wire harness from the lower steering wheel cover.
      GTY828130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors.

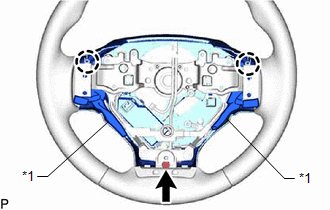

    3. Remove the screw.
      GTY833536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Heater Thermistor
    4. Disengage the 2 claws of the lower steering wheel boss cover.
      NOTE:

      If the heater thermistor comes off the lower steering wheel cover, replace the steering wheel assembly.

      HINT:

      Do not remove the lower steering wheel boss cover from the steering wheel sub-assembly. Loosen the lower steering boss cover.

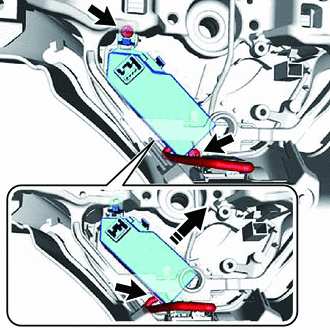

    5. Remove the 2 screws.
      GTY776368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    6. Move the steering vibration and heater ECU until it reaches a position where the connector can be disconnected.
    7. Disconnect the connector to remove the steering vibration and heater ECU from the lower steering wheel cover.
