Removal [09/2014 - 11/2017]: Procedure

  1. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

    Refer to REMOVAL [09/2014 - 11/2017]

  2. REMOVE STEERING WHEEL HEATER CONTROL ASSEMBLY

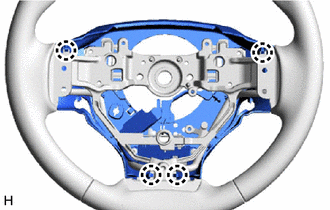

    1. Disengage the 4 claws of the lower steering wheel boss cover.

      HINT:

      Do not remove the lower steering wheel boss cover from the steering wheel sub-assembly. Loosen the lower steering boss cover.

      GTY502857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.

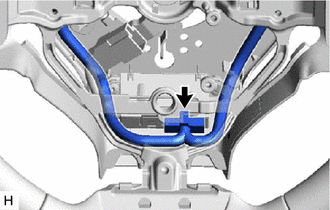

      GTY502856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp.

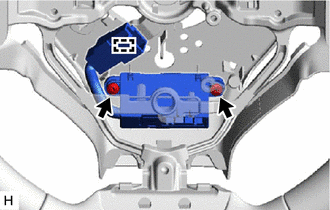

      GTY518678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 screws and steering wheel heater control assembly from the lower steering wheel boss cover.
