Parts Location [09/2014 - ]: Illustration

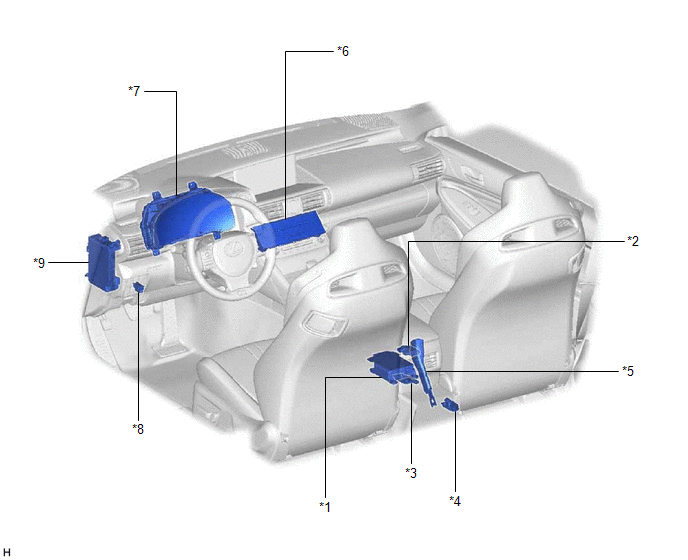

Fig 1: Occupant Classification System Components Location [09/2014 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIRBAG ECU ASSEMBLY	*2	OCCUPANT DETECTION ECU
*3	FRONT OCCUPANT CLASSIFICATION SENSOR LH	*4	REAR OCCUPANT CLASSIFICATION SENSOR LH
*5	FRONT SEAT INNER BELT ASSEMBLY RH - PASSENGER SIDE BUCKLE SWITCH	*6	AIR CONDITIONING CONTROL ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR
*7	COMBINATION METER ASSEMBLY - SRS WARNING LIGHT	*8	DLC3
*9	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - ODS FUSE - IG1 NO. 3 FUSE	-	-
