Terminals Of ECM [09/2014 - 11/2017]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard voltage between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indicated.

The result of checks should be compared with the standard voltage for that pair of terminals, and displayed in the "Specified Condition" column.

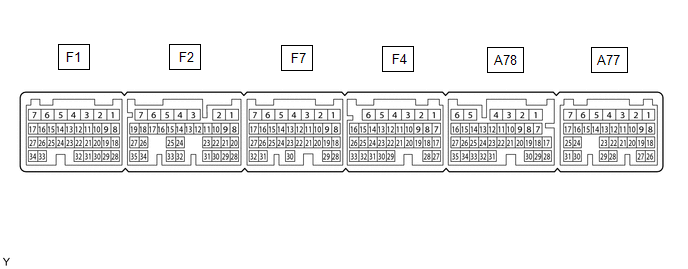

The illustration above can be used as a reference to identify the ECM terminal locations.

1. *: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

1. WAVEFORM 1
   Fig 1: Waveform 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

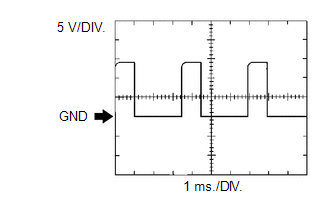

   CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY OPERATION SIGNAL



   ECM Terminal Name	Between OE1+ and OE1-, or OE2+ and OE2-
   Tester Range	5 V/DIV., 1 ms./DIV.
   Condition	Idling

2. WAVEFORM 2
   Fig 2: Waveform 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

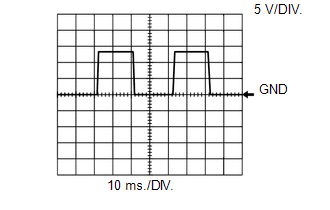

   AIR FUEL RATIO SENSOR (SENSOR 1) HEATER OPERATION SIGNAL



   ECM Terminal Name	Between HA1A and E04, or HA2A and E05
   Tester Range	5 V/DIV., 10 ms./DIV.
   Condition	Idling

3. WAVEFORM 3
   Fig 3: Waveform 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

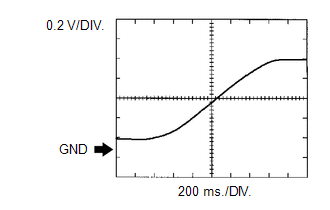

   HEATED OXYGEN SENSOR (SENSOR 2) SIGNAL



   ECM Terminal Name	Between OX1B and EX1B, or OX2B and EX2B
   Tester Range	0.2 V/DIV., 200 ms./DIV.
   Condition	Engine speed maintained at 2500 rpm for 2 minutes after warming up engine

   HINT:

   In the Data List, item O2S B1S2 and O2S B2S2 shows the ECM values from the heated oxygen sensor.

4. WAVEFORM 4
   Fig 4: Waveform 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   FUEL INJECTOR ASSEMBLY (FOR DIRECT INJECTION) SIGNAL AND INJECTION CONFIRMATION SIGNAL



   ECM Terminal Name	CH1: Between #1 or #6 and E1 CH2: Between INJ1 and E1
   	CH1: Between #4 or #7 and E1 CH2: Between INJ2 and E1
   	CH1: Between #5 or #8 and E1 CH2: Between INJ3 and E1
   	CH1: Between #2 or #3 and E1 CH2: Between INJ4 and E1
   Tester Range	2 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • When the direct injection injectors are operating, Direct is displayed for Injection Way of the Data List.
5. WAVEFORM 5
   Fig 5: Waveform 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

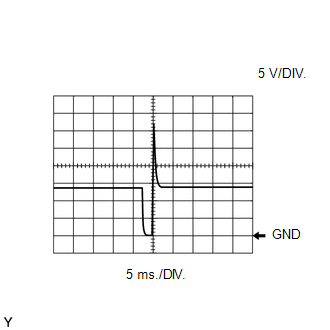

   FUEL INJECTOR ASSEMBLY (FOR PORT INJECTION) SIGNAL



   ECM Terminal Name	Between #10 (to #80) and E01
   Tester Range	5 V/DIV., 5 ms./DIV.
   Condition	Idling, engine coolant temperature 60°C or less

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • When the port injection injectors are operating, Port is displayed for Injection Way of the Data List.

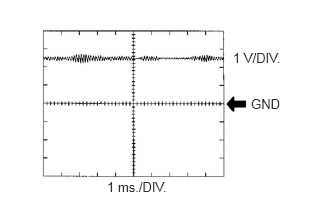

6. WAVEFORM 6
   Fig 6: Waveform 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   KNOCK CONTROL SENSOR SIGNAL



   ECM Terminal Name	Between KNK1 and EKNK Between KNK2 and EKN2 Between KNK3 and EKN3 Between KNK4 and EKN4
   Tester Range	1 V/DIV., 1 ms./DIV.
   Condition	Engine speed maintained at 4000 rpm after warming up engine

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • The waveforms and amplitudes displayed differ slightly depending on the vehicle condition.

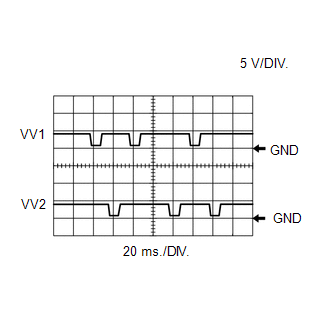

7. WAVEFORM 7

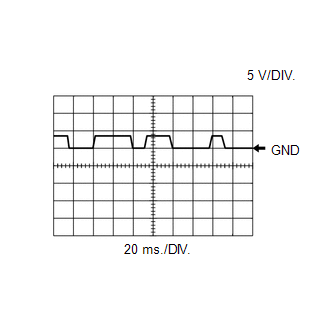

   Fig 7: Waveform 7

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   VVT SENSOR (FOR INTAKE CAMSHAFT) SIGNAL



   ECM Terminal Name	Between VV1+ and VV1- Between VV2+ and VV2-
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

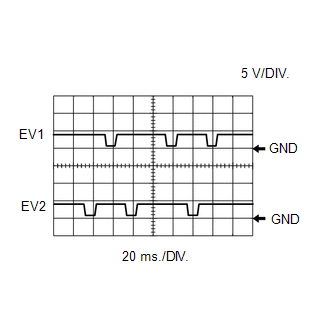

8. WAVEFORM 8
   Fig 8: Waveform 8

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   VVT SENSOR (FOR EXHAUST CAMSHAFT) SIGNAL



   ECM Terminal Name	Between EV1+ and EV1- Between EV2+ and EV2-
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

9. WAVEFORM 9
   CAMSHAFT POSITION SENSOR SIGNAL



   ECM Terminal Name	Between G2+ and G2-
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

   Fig 9: Waveform 9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. WAVEFORM 10

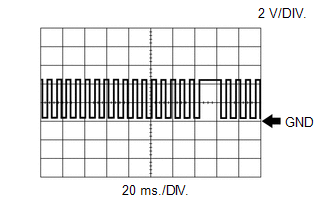

    CRANKSHAFT POSITION SENSOR SIGNAL



    ECM Terminal Name	Between NE+ and NE-
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

    Fig 10: Waveform 10

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

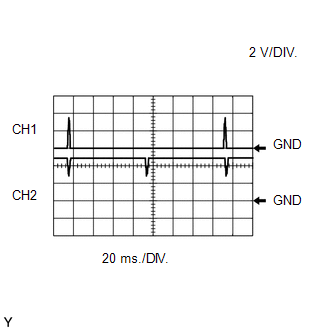

11. WAVEFORM 11
    Fig 11: Waveform 11

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

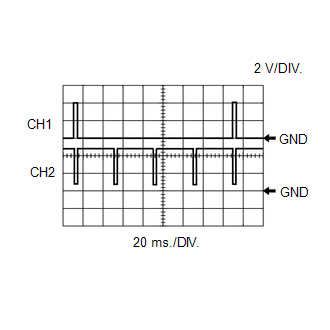

    IGNITION COIL ASSEMBLY SIGNAL (IGT AND IGF SIGNAL)



    ECM Terminal Name	CH1: IGT1, 4, 6 or 7 and E1 CH2: IGF1 and E1
    	CH1: IGT2, 3, 5 or 8 and E1 CH2: IGF2 and E1
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

12. WAVEFORM 12
    Fig 12: Waveform 12

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

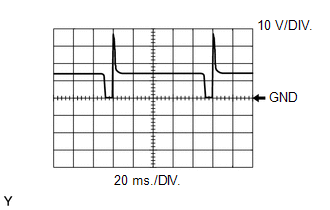

    PURGE VSV OPERATION SIGNAL



    ECM Terminal Name	Between PRG and E1
    Tester Range	10 V/DIV., 20 ms./DIV.
    Condition	Idling, under purge control

    HINT:

    If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

13. WAVEFORM 13

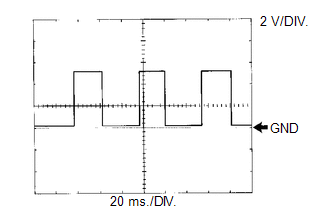

    Fig 13: Waveform 13

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    VEHICLE SPEED SIGNAL



    ECM Terminal Name	Between SPD and E1
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Driving at 20 km/h (12 mph)

    HINT:

    The wavelength becomes shorter as the vehicle speed increases.

14. WAVEFORM 14
    Fig 14: Waveform 14

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR POSITIVE TERMINAL SIGNAL



    ECM Terminal Name	Between M+ and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

15. WAVEFORM 15
    Fig 15: Waveform 15

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR NEGATIVE TERMINAL SIGNAL



    ECM Terminal Name	Between M- and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

16. WAVEFORM 16
    Fig 16: Waveform 16

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

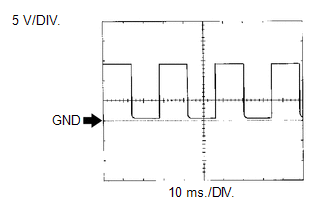

    ENGINE SPEED SIGNAL



    ECM Terminal Name	Between TACH and E1
    Tester Range	5 V/DIV., 10 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

17. WAVEFORM 17
    Fig 17: Waveform 17

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

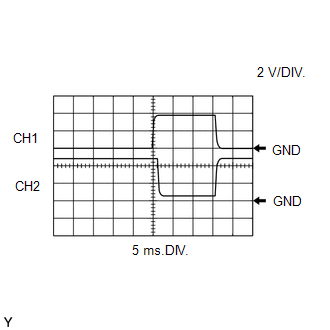

    FUEL PUMP FOR HIGH PRESSURE SIDE SIGNAL (SPILL CONTROL VALVE)



    ECM Terminal Name	CH1: Between FPD and E1 CH2: Between FPF1 and E1
    	CH1: Between FPD2 and E1 CH2: Between FPF2 and E1
    Tester Range	2 V/DIV., 5 ms./DIV.
    Condition	Idling with warm engine

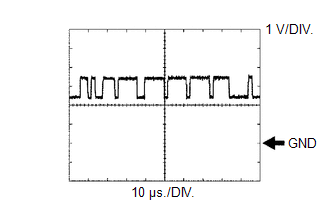

18. WAVEFORM 18
    Fig 18: Waveform 18

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

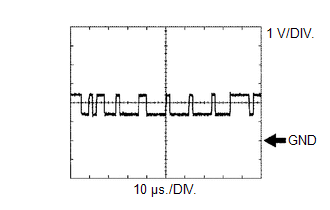

    CAN COMMUNICATION SIGNAL (REFERENCE)



    ECM Terminal Name	Between CANH and E1 Between CANP and E1 Between CAN+ and E1
    Tester Range	1 V/DIV., 10 μs./DIV.
    Condition	Engine switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

19. WAVEFORM 19
    Fig 19: Waveform 19

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)



    ECM Terminal Name	Between CANL and E1 Between CANN and E1 Between CAN- and E1
    Tester Range	1 V/DIV., 10 μs./DIV.
    Condition	Engine switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

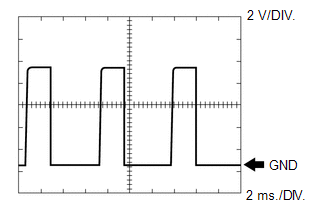

20. WAVEFORM 20
    Fig 20: Waveform 20

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE SPEED SIGNAL



    ECM Terminal Name	Between NEO and E1
    Tester Range	2 V/DIV., 2 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

21. WAVEFORM 21

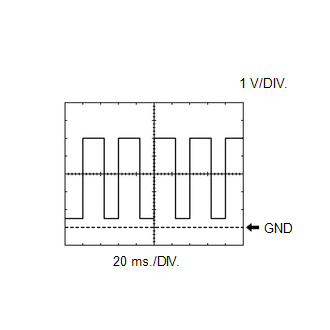

    COOLING FAN CONTROL SIGNAL



    ECM Terminal Name	Between RFC and E1
    Tester Range	1 V/DIV., 20 ms./DIV.
    Condition	Engine switch on (IG), A/C switch on (max cool)

    HINT:

    The duty ratio varies depending on the engine coolant temperature.

    Fig 21: Waveform 21

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

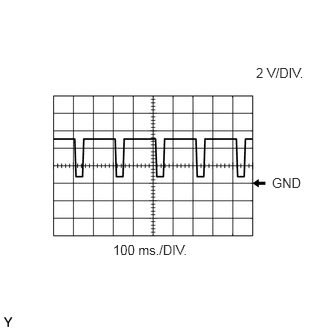

22. WAVEFORM 22
    CAMSHAFT TIMING CONTROL MOTOR EMD SIGNAL



    ECM Terminal Name	Between EMD1 and E1
    	Between EMD2 and E1
    Tester Range	2 V/DIV., 100 ms./DIV.
    Condition	Idling with warm engine

    Fig 22: Waveform 22

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

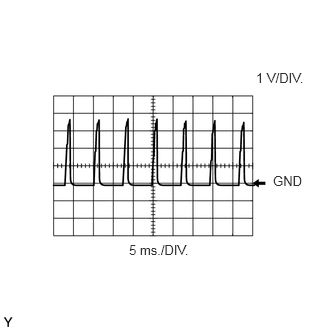

23. WAVEFORM 23
    CAMSHAFT TIMING CONTROL MOTOR EDT SIGNAL



    ECM Terminal Name	Between EDT1 and E1
    	Between EDT2 and E1
    Tester Range	1 V/DIV., 5 ms./DIV.
    Condition	Idling with warm engine

    Fig 23: Waveform 23

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. WAVEFORM 24
    CAMSHAFT TIMING CONTROL MOTOR EMR SIGNAL



    ECM Terminal Name	Between EMR1 and E1
    	Between EMR2 and E1
    Tester Range	2 V/DIV., 5 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

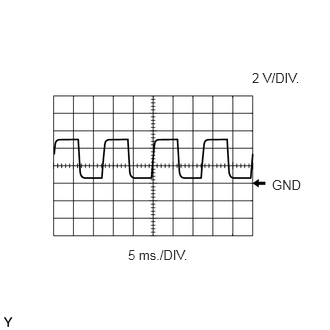

    Fig 24: Waveform 24

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
25. WAVEFORM 25

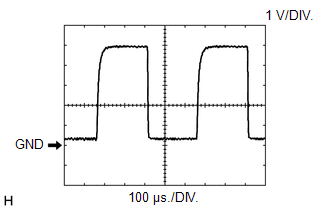

    MASS AIR FLOW METER SUB-ASSEMBLY SIGNAL



    ECM Terminal Name	Between VG and E2G
    Tester Range	1 V/DIV., 100 μs./DIV.
    Condition	Engine switch on (IG)

    Fig 25: Waveform 25

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
