Engine Control System - Diagnostic Codes (5 Of 9)
>>
SFI System
>>
DTC P0462: Fuel Level Sensor "A" Circuit Low; DTC P0463: Fuel Level Sensor "A" Circuit High [03/2019 - ]
>>

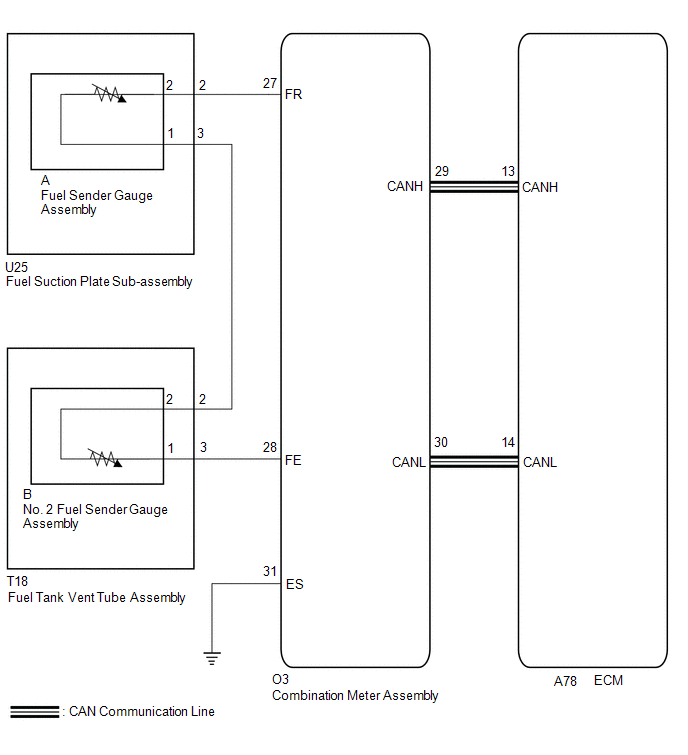

Wiring Diagram
DTC P0462: Fuel Level Sensor "A" Circuit Low; DTC P0463: Fuel Level Sensor "A" Circuit High [03/2019 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
