Engine Control System - Circuit Tests (2 Of 3)
>>
SFI System
>>
VC Output Circuit [09/2014 - ]
>>
Wiring Diagram

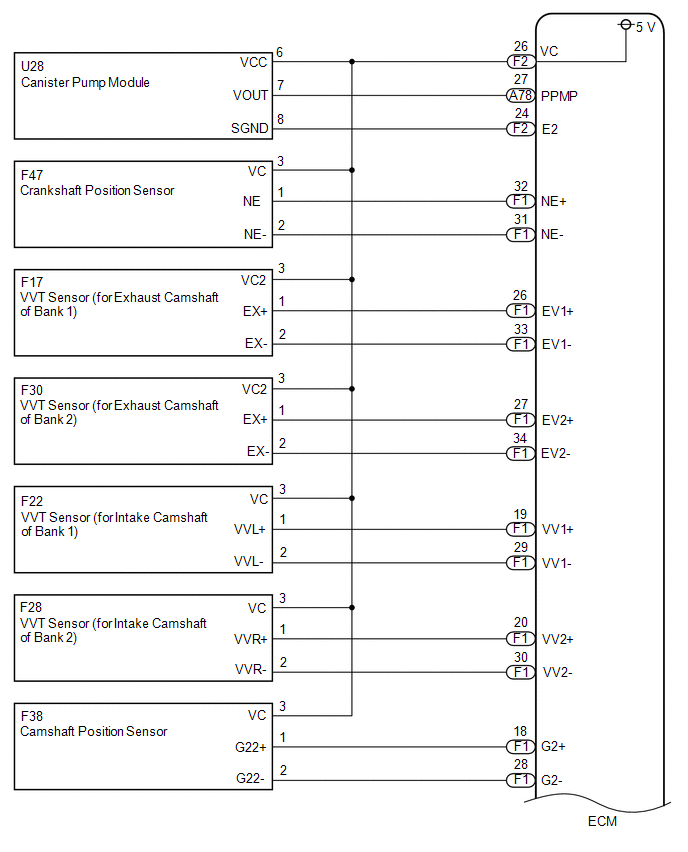

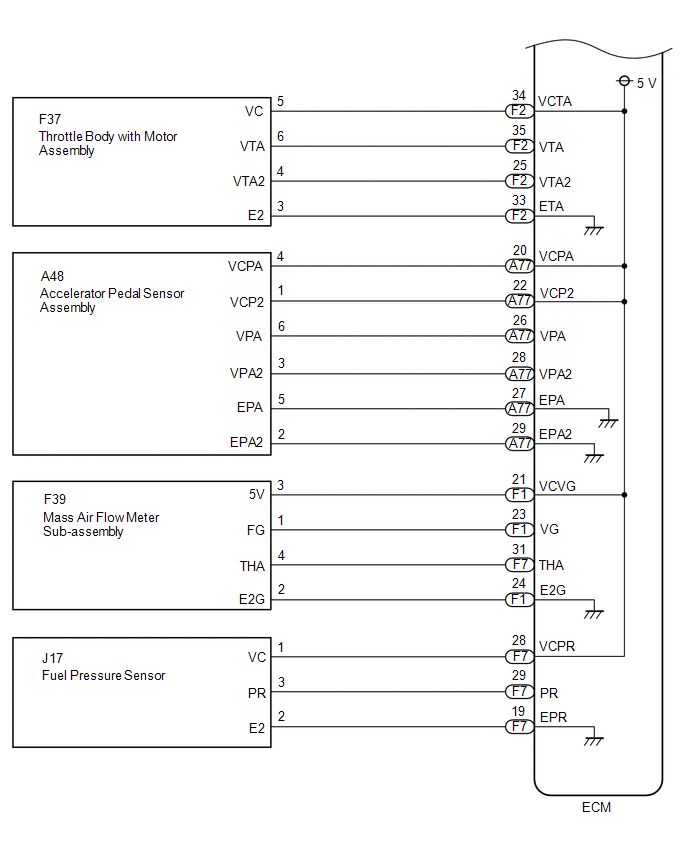

VC Output Circuit [09/2014 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
