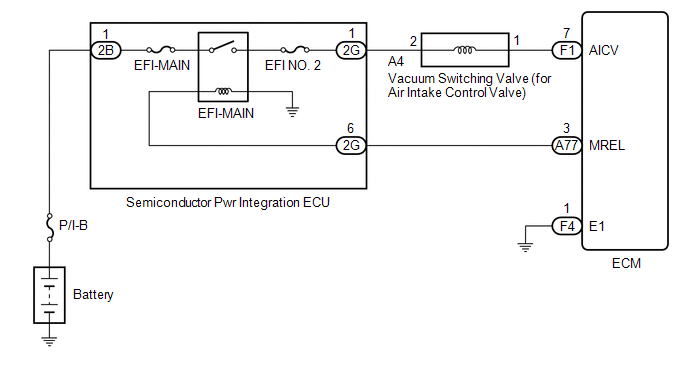

Air Intake Control Circuit [09/2014 - ]: Wiring Diagram

GTY810060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
