Installation [09/2014 - ]: Procedure

  1. INSTALL NO. 3 V-BANK COVER BRACKET SUB-ASSEMBLY
    1. Install the No. 3 V-bank cover bracket sub-assembly with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. INSTALL NO. 4 V-BANK COVER BRACKET SUB-ASSEMBLY
    1. Install the No. 4 V-bank cover bracket sub-assembly with the nut.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  3. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. INSTALL KNOCK CONTROL SENSOR

    Refer to PROCEDURE - Step 1

  5. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 1

  6. INSTALL ENGINE OIL LEVEL SENSOR

    Refer to PROCEDURE - Step 1

  7. INSTALL ENGINE OIL TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 1

  8. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. INSTALL NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY

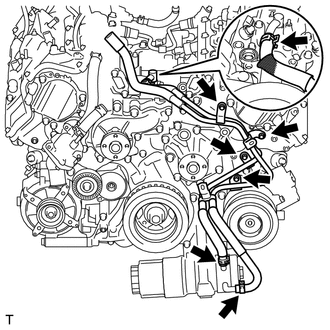

    1. Install the No. 2 water by-pass pipe sub-assembly with the 4 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      GTY496779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the No. 2 water by-pass pipe sub-assembly to the oil cooler and heat exchanger assembly and slide the 3 clips to secure it.
  10. INSTALL WATER INLET HOUSING

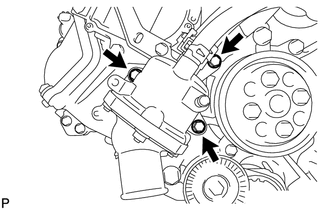

    1. Install the water inlet housing and a new gasket with the 3 bolts.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

      GTY512208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

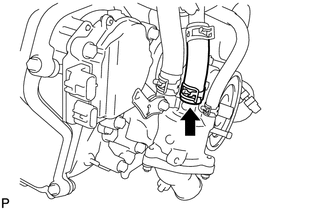

    2. Connect the water inlet hose to the water inlet housing and slide the clip to secure it.
      GTY505090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL WATER PUMP PULLEY

    Refer to PROCEDURE - Step 2

  12. INSTALL OIL PUMP DRIVE SHAFT PULLEY
    1. Temporarily install the pulley with the 4 bolts.
      GTY1171007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

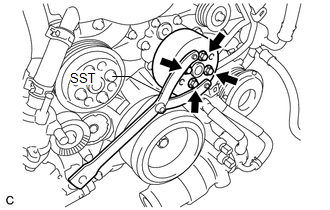

    2. Using a SST, hold the pulley and tighten the 4 bolts.
      • SST: 09960-10010

      Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)

  13. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY
    1. Install the No. 2 idler pulley sub-assembly with the bolt.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  14. INSTALL NO. 4 ENGINE COVER SUB-ASSEMBLY
    1. Install the No. 4 engine cover sub-assembly.
  15. INSTALL NO. 5 ENGINE WIRE
    1. Install the No. 5 engine wire with the 2 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Engage the clamp.
    3. Connect the 4 knock sensor connectors.
  16. INSTALL FUEL INJECTOR SEAL

    Refer to PROCEDURE - Step 1

  17. INSTALL FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  18. INSTALL FUEL DELIVERY PIPE LH

    Refer to PROCEDURE - Step 4

  19. INSTALL FUEL DELIVERY PIPE RH

    Refer to PROCEDURE - Step 3

  20. INSTALL CASE SEPARATOR
    1. Install separator case to the cylinder head with the 4 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Connect the fuel pressure sensor connector.
  21. INSTALL NO. 4 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  22. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  23. SET FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 1)

    Refer to PROCEDURE - Step 1

  24. SET FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 2)

    HINT:

    Use the same procedure as for the bank 1 side.

  25. TEMPORARILY INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  26. TEMPORARILY INSTALL NO. 3 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  27. INSTALL FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 1)

    Refer to PROCEDURE - Step 5

  28. INSTALL FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 2)

    Refer to PROCEDURE - Step 6

  29. INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  30. INSTALL NO. 3 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  31. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  32. INSTALL NO. 3 COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  33. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  34. INSTALL INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 1

  35. CONNECT NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  36. INSTALL FUEL INJECTOR ASSEMBLY (for Port Injection)

    Refer to PROCEDURE - Step 1

  37. INSTALL INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 2

  38. INSTALL NO. 1 DELIVERY PIPE SPACER

    Refer to PROCEDURE - Step 17

  39. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY (for Port Injection)

    Refer to PROCEDURE - Step 4

  40. INSTALL NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY (for Port Injection)

    Refer to PROCEDURE - Step 5

  41. INSTALL FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  42. CONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 13

  43. INSTALL PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 1

  44. INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY
    1. Install the water by-pass pipe sub-assembly to the intake air surge tank assembly with the 2 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Connect the No. 5 water by-pass hose to the water by-pass pipe sub-assembly and slide the clip to secure it.
    3. Connect the water by-pass hose to the water by-pass pipe sub-assembly and slide the clip to secure it.
    4. Connect the No. 3 water by-pass hose to the water by-pass pipe sub-assembly and slide the clip to secure it.
  45. INSTALL INJECTOR DRIVER BRACKET

    Refer to PROCEDURE - Step 12

  46. INSTALL INJECTOR DRIVER

    Refer to PROCEDURE - Step 1

  47. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 1 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - ]

  48. INSTALL TRANSMISSION BREATHER ASSEMBLY

    Refer to PROCEDURE - Step 1 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 1 [03/2019 - ]

  49. INSTALL WIRE HARNESS CLAMP BRACKET

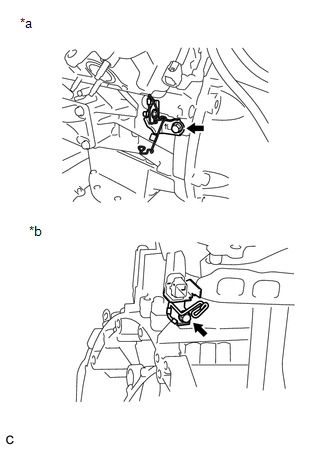

    1. Install the 2 wire harness clamp brackets with the 2 bolts.

      for LH side

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

      for RH side

      Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

      GTY507922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a for LH Side
      *b for RH Side
  50. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET LH
    1. Install the front No. 1 engine mounting bracket LH with the 4 bolts.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  51. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET RH
    1. Install the front No. 1 engine mounting bracket RH with the 4 bolts.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  52. INSTALL ENGINE WIRE
    1. Install the engine wire to the engine assembly.
  53. INSTALL ENGINE HANGER

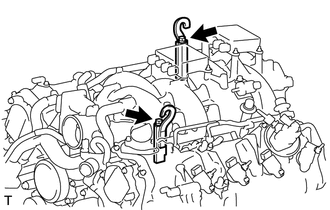

    1. Install the 2 No. 1 engine hangers with the 2 bolts as shown in the illustration.

      Part No.

      Item Part No.
      No. 1 Engine Hanger 12081-38040
      Bolt 90119-14120

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

      GTY517105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE ENGINE FROM ENGINE STAND

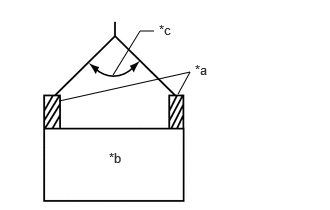

    1. Attach an engine sling device and hang the engine assembly with a chain block.

      HINT:

      When hanging the engine assembly, make sure to hang the engine assembly with the chain at an angle of 50° or less. Otherwise, the engine assembly or engine hangers may be damaged.

      GTY499693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Hanger
      *b Engine Assembly
      *c 50° or Less
    2. Remove the bolts and engine assembly from the engine stand.
