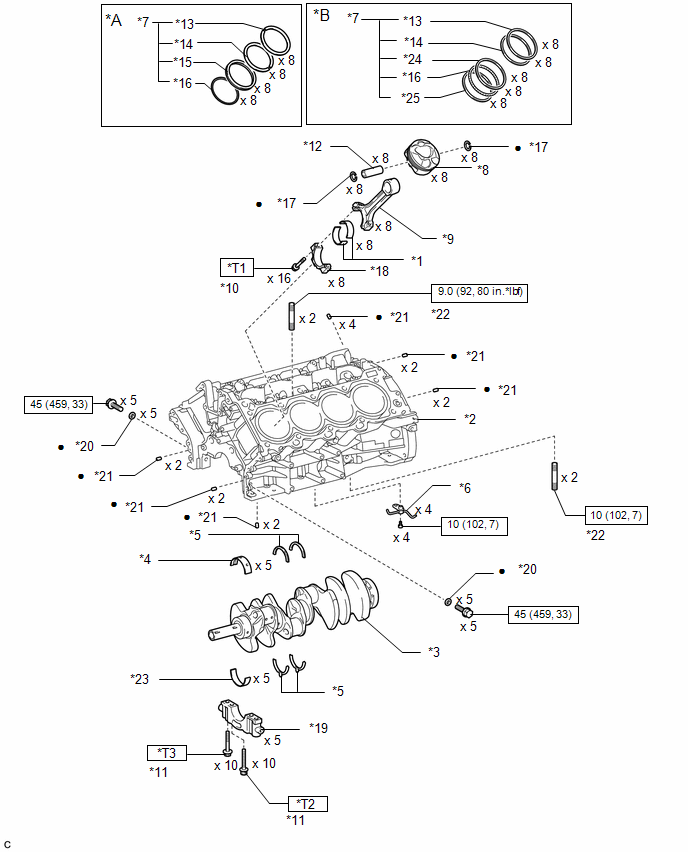

Components [09/2014 - ]
| *A | for 2-piece Type | *B | for 3-piece Type |
| *1 | CONNECTING ROD BEARING | *2 | CYLINDER BLOCK SUB-ASSEMBLY |
| *3 | CRANKSHAFT | *4 | CRANKSHAFT BEARING |
| *5 | CRANKSHAFT THRUST WASHER SET | *6 | NO. 1 OIL NOZZLE SUB-ASSEMBLY |
| *7 | PISTON RING SET | *8 | PISTON |
| *9 | CONNECTING ROD | *10 | CONNECTING ROD BOLT |
| *11 | CRANKSHAFT BEARING CAP SET BOLT | *12 | PISTON PIN |
| *13 | NO. 1 COMPRESSION RING | *14 | NO. 2 COMPRESSION RING |
| *15 | OIL RING | *16 | OIL RING EXPANDER |
| *17 | PISTON PIN HOLE SNAP RING | *18 | CONNECTING ROD CAP |
| *19 | CRANKSHAFT BEARING CAP | *20 | SEAL WASHER |
| *21 | STRAIGHT PIN | *22 | STUD BOLT |
| *23 | LOWER CRANKSHAFT BEARING | *24 | UPPER SIDE RAIL |
| *25 | LOWER SIDE RAIL | - | - |
| N.m (kgf/cm, ft*lbf): Specified torque | • | Non-reusable part | |
| *T1 | 1st: 40 (408, 30) 2nd: Turn 90° |
*T2 | 1st: 61 (622, 45) 2nd: Turn 90° |
| *T3 | 1st: 27 (275, 20) 2nd: Turn 90° |
- | - |
