Components [09/2014 - 05/2018]
Fig 1: Engine Assembly Replacement Components With Torque Specifications [09/2014 - 05/2018] (1 Of 8)
| *1 | AIR CLEANER CASE SUB-ASSEMBLY | *2 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
| *3 | COOL AIR INTAKE DUCT SEAL | *4 | ENGINE ROOM ECU COVER |
| *5 | FRONT FENDER LINER LH | *6 | FRONT FENDER LINER RH |
| *7 | FRONT LOWER SUSPENSION MEMBER PROTECTOR | *8 | FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY |
| *9 | FRONT SUSPENSION UPPER TO COWL BRACE LH | *10 | FRONT SUSPENSION UPPER TO COWL BRACE RH |
| *11 | INLET NO. 1 AIR CLEANER | *12 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *13 | NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY | *14 | NO. 2 ENGINE UNDER COVER |
| *15 | RADIATOR RESERVE TANK ASSEMBLY | *16 | REAR ENGINE UNDER COVER LH |
| *17 | REAR ENGINE UNDER COVER RH | *18 | V-BANK COVER SUB-ASSEMBLY |
| *19 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *20 | NO. 1 ENGINE ROOM RELAY BLOCK COVER |
| *21 | NO. 2 VENTILATION HOSE | *22 | NO. 3 VENTILATION HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Engine Assembly Replacement Components With Torque Specifications [09/2014 - 05/2018] (2 Of 8)
| *1 | BATTERY TRAY | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *3 | WIRE HARNESS CLAMP BRACKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 3: Engine Assembly Replacement Components With Torque Specifications [09/2014 - 05/2018] (3 Of 8)
| *1 | HEATER WATER INLET HOSE | *2 | HEATER WATER OUTLET HOSE |
| *3 | NO. 1 FUEL VAPOR FEED HOSE | *4 | NO. 1 RADIATOR HOSE |
| *5 | NO. 2 OIL COOLER INLET HOSE | *6 | NO. 2 OIL COOLER OUTLET HOSE |
| *7 | NO. 2 RADIATOR HOSE | *8 | FUEL TUBE SUB-ASSEMBLY |
| *9 | NO. 2 FUEL TUBE SUB-ASSEMBLY | *10 | FUEL PIPE CLAMP |
| *11 | UNION TO CHECK VALVE HOSE | *12 | GROUND CABLE |
| *13 | FUEL PIPE | *14 | WATER HOSE SET |
| *15 | OIL COOLER HOSE SUB-ASSEMBLY | *16 | O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 4: Engine Assembly Replacement Components With Torque Specifications [09/2014 - 05/2018] (4 Of 8)
| *1 | ENGINE WIRE | *2 | NO. 2 ENGINE WIRE |
| *3 | NO. 3 ENGINE WIRE | *4 | NO. 4 ENGINE WIRE |
| *5 | NO. 1 CENTER COWL TOP VENTILATOR LOUVER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

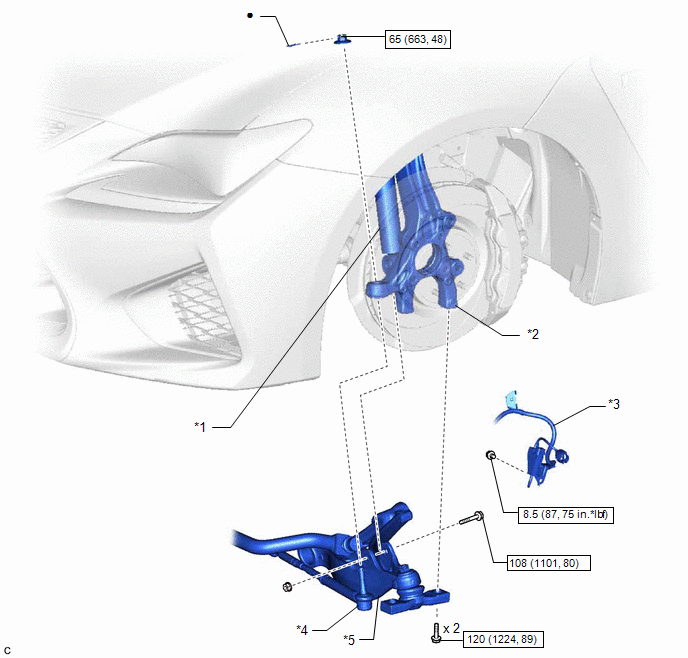

Fig 5: Engine Assembly Replacement Components With Torque Specifications [09/2014 - 05/2018] (5 Of 8)
| *1 | FRONT SHOCK ABSORBER ASSEMBLY LH | *2 | STEERING KNUCKLE LH |
| *3 | FRONT SKID CONTROL SENSOR WIRE | *4 | TIE ROD ASSEMBLY LH |
| *5 | FRONT SUSPENSION LOWER ARM ASSEMBLY LH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 6: Engine Assembly Replacement Components With Torque Specifications [09/2014 - 05/2018] (6 Of 8)
| *1 | ENGINE UNDER COVER SUB-ASSEMBLY LH | *2 | ENGINE UNDER COVER SUB-ASSEMBLY RH |
| *3 | FRONT ENGINE MOUNTING INSULATOR | *4 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
| *5 | REAR ENGINE MOUNTING MEMBER | *6 | REAR ENGINE MOUNTING INSULATOR |
| *7 | STRUT BAR BRACKET REINFORCEMENT RH | *8 | STRUT BAR BRACKET REINFORCEMENT LH |
| *9 | ENGINE MOUNTING SPACER | *10 | ENGINE ASSEMBLY WITH TRANSMISSION |
| *11 | WIRE HARNESS | *12 | NO. 2 FRAME CROSSMEMBER ASSEMBLY |
| *13 | OIL COOLER BRACKET | *14 | FRONT NO. 2 STABILIZER BRACKET RH |
| *15 | FRONT NO. 2 STABILIZER BRACKET LH | *16 | NO. 1 ENGINE MOUNTING BRACKET |
| *17 | REAR ENGINE MOUNTING HEAT INSULATOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

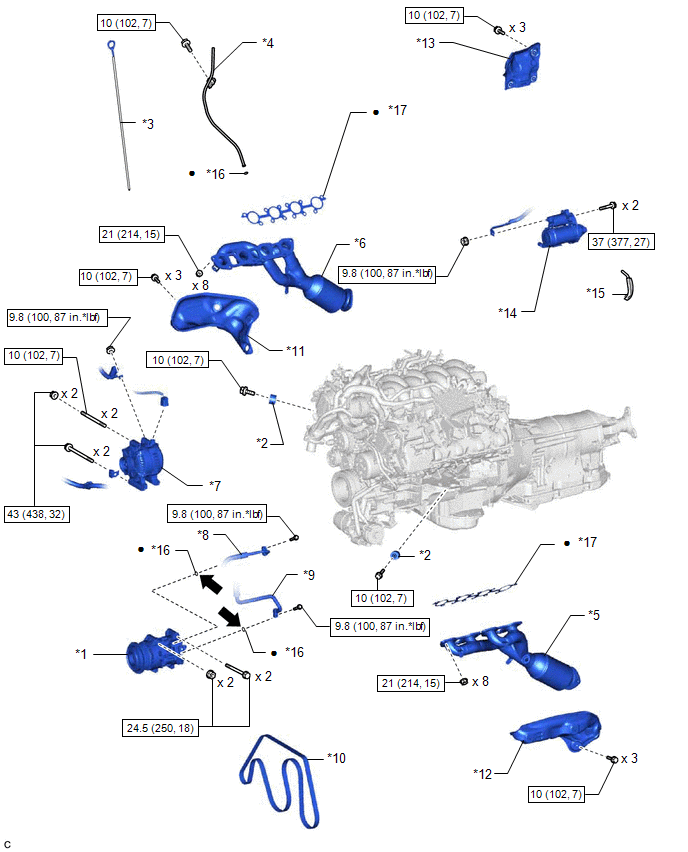

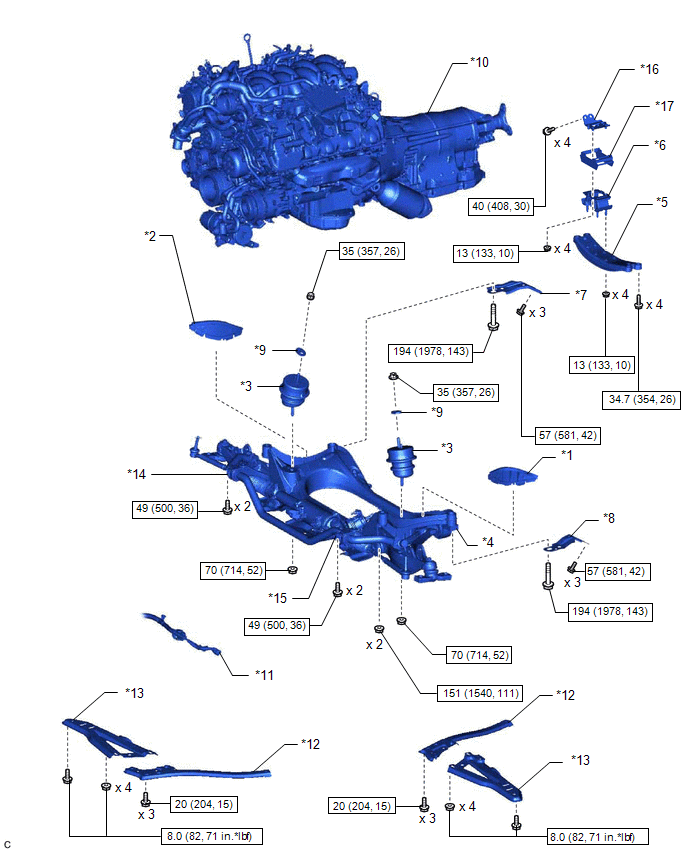

Fig 7: Engine Assembly Replacement Components With Torque Specifications [09/2014 - 05/2018] (7 Of 8)
| *1 | COMPRESSOR ASSEMBLY WITH PULLEY | *2 | ENGINE MOUNTING DAMPER |
| *3 | ENGINE OIL LEVEL DIPSTICK | *4 | ENGINE OIL LEVEL DIPSTICK GUIDE |
| *5 | EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) | *6 | EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst) |
| *7 | GENERATOR ASSEMBLY | *8 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE |
| *9 | SUCTION HOSE | *10 | V-RIBBED BELT |
| *11 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR | *12 | NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
| *13 | NO. 3 EXHAUST MANIFOLD HEAT INSULATOR | *14 | STARTER ASSEMBLY |
| *15 | FLYWHEEL HOUSING SIDE COVER | *16 | O-RING |
| *17 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Compressor oil ND-OIL 8 or equivalent | - | - |
Fig 8: Engine Assembly Replacement Components With Torque Specifications [09/2014 - 05/2018] (8 Of 8)
| *1 | DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT | *2 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY |
| *3 | CRANKSHAFT ANGLE SENSOR ROTOR | *4 | REAR DRIVE PLATE SPACER |
| *5 | OIL COOLER TUBE | *6 | BREATHER PLUG HOSE |
| *7 | FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY | *8 | AUTOMATIC TRANSMISSION ASSEMBLY |
| *9 | WIRE HARNESS | - | - |
| *a | Black: x 1 Silver: x 5 |
- | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part | |
| *T1 | 1st: 29.5 (301, 22) 2nd: Turn 90° |
- | - |
