Installation [09/2014 - ]: Procedure

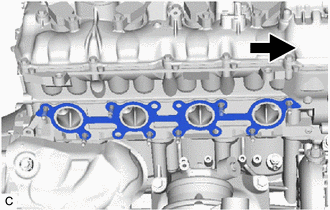

  1. INSTALL EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2)
    1. Install a new exhaust manifold to head gasket to the cylinder head sub-assembly as shown in the illustration.
      GTY518042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
  2. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

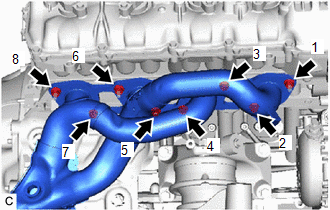

    1. Fig 1: Exhaust Manifold Sub-Assembly RH Tightening Sequence (TWC: Front Catalyst)
      GTY496349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Temporarily install the exhaust manifold sub-assembly RH (TWC: Front Catalyst) to the cylinder head sub-assembly with the 8 nuts.

    2. Tighten the 8 nuts in the order shown in the illustration.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  3. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 1 exhaust manifold heat insulator to the exhaust manifold sub-assembly RH (TWC: Front Catalyst) with the 3 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  4. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Apply a light coat of engine oil to a new O-ring.
    2. Install the O-ring to the engine oil level dipstick guide.
    3. Install the engine oil level dipstick guide with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  5. INSTALL ENGINE OIL LEVEL DIPSTICK
    1. Install the engine oil level dipstick to the engine oil level dipstick guide.
  6. INSTALL ENGINE UNDER COVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 24 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 24 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 24 [03/2019 - ]

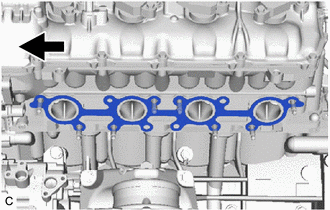

  7. INSTALL EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1)
    1. Install a new exhaust manifold to head gasket to the cylinder head sub-assembly as shown in the illustration.
      GTY497819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front
  8. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)
    1. Temporarily install the exhaust manifold sub-assembly LH (TWC: Front Catalyst) to the cylinder head sub-assembly with the 8 nuts.

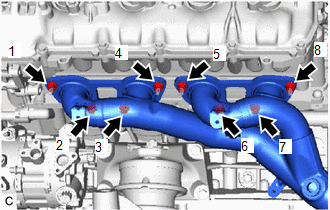

      Fig 2: Exhaust Manifold Sub-Assembly LH (TWC: Front Catalyst) Tightening Sequence
      GTY515350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 8 nuts in the order shown in the illustration.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  9. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 2 exhaust manifold heat insulator to the exhaust manifold sub-assembly LH (TWC: Front Catalyst) with the 3 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  10. INSTALL ENGINE MOUNTING DAMPER
    1. Install the engine mounting damper to the front No. 1 engine mount bracket with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  11. INSTALL AIR FUEL RATIO SENSOR

    Refer to INSTALLATION [09/2014 - ]
