Removal [09/2014 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 10 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 10 [03/2019 - ]

  2. DRAIN ENGINE OIL

    See step  1 [09/2014 - 10/2015], or see step  1 [10/2015 - 11/2021], or see step  1 [11/2021 - ]

  3. REMOVE OIL THERMOSTAT HOUSING ASSEMBLY

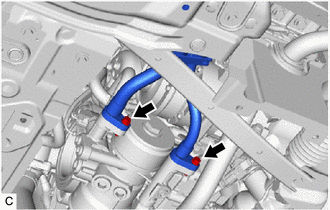

    1. Remove the 2 bolts and disconnect the oil cooler hose sub-assembly.
      GTY516412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

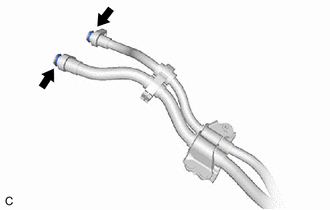

    2. Remove the 2 O-rings from the oil cooler hose sub-assembly.
      GTY510542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

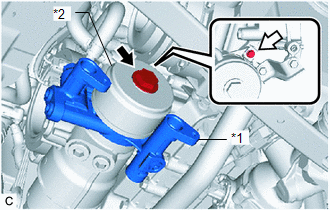

    3. Remove the oil cooler union bolt and gasket.
      GTY502276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Oil Thermostat Housing Assembly
      *2 Oil Cooler Assembly
      Oil Cooler Union Bolt
      Bolt
    4. Remove the bolt, separate the oil cooler assembly and then remove the oil thermostat housing assembly.

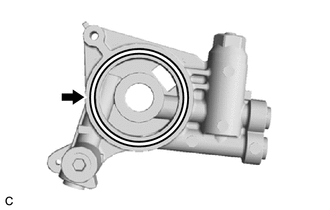

    5. Remove the O-ring from the oil thermostat housing assembly.
      GTY516420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

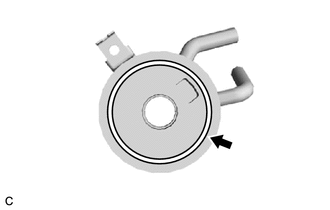

    6. Remove the O-ring from the oil cooler assembly.
      GTY516419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
