Removal [09/2014 - ]: Procedure

  1. REMOVE TIMING CHAIN COVER ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE NO. 1 OIL PIPE

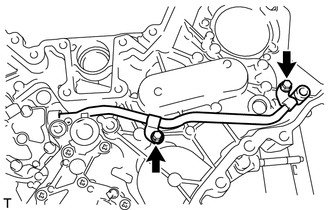

    1. Remove the 2 bolts and No. 1 oil pipe from the scavenging pump assembly and timing chain cover sub-assembly.
      GTY502469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pipe seal and O-ring from the No. 1 oil pipe.
  3. REMOVE NO. 2 OIL PIPE

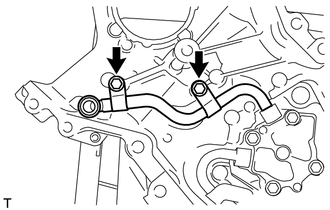

    1. Remove the 2 bolts and No. 2 oil pipe from the scavenging pump assembly and timing chain cover sub-assembly.
      GTY502468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pipe seal and O-ring from the No. 2 oil pipe.
  4. REMOVE NO. 3 OIL PIPE

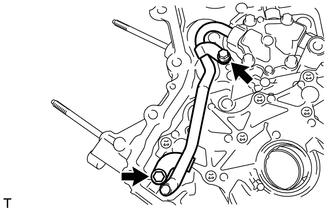

    1. Remove the 2 bolts and No. 3 oil pipe from the scavenging pump assembly and timing chain cover sub-assembly.
      GTY518593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the No. 3 oil pipe.
  5. REMOVE SCAVENGING PUMP ASSEMBLY
    1. Remove the 6 bolts, scavenging pump assembly and gasket.
      GTY148816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
