Removal [09/2014 - 11/2017]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to REMOVAL [09/2014 - 11/2017]

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. DISCONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 5

  5. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 6

  6. REMOVE INLET NO. 1 AIR CLEANER

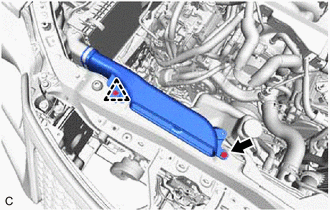

    GTY516220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt, clip and inlet No. 1 air cleaner.
  7. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  8. DRAIN ENGINE COOLANT

    See step  3

  9. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 6

  10. DISCONNECT HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Disengage the clamp and disconnect the hood lock control cable assembly from the upper radiator support.

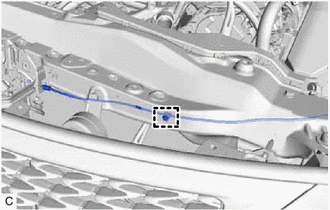

      GTY516218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 7

  12. REMOVE RADIATOR RESERVE TANK ASSEMBLY
    1. Slide the clip and disconnect the reserve tank outlet hose from the water inlet housing.

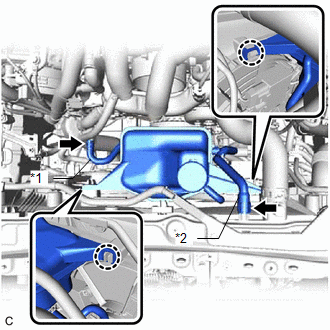

      GTY517115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Reserve Tank Outlet Hose
      *2 Radiator Reserve Tank Hose
    2. Slide the clip and disconnect the radiator reserve tank hose from the radiator assembly.
    3. Disengage the 2 claws and remove the radiator reserve tank assembly from the fan shroud assembly.
  13. DISCONNECT NO. 1 RADIATOR HOSE
    1. Slide the clip and disconnect the No. 1 radiator hose from the radiator assembly.

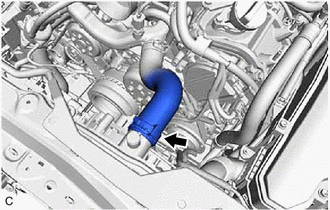

      GTY516217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. DISCONNECT NO. 2 RADIATOR HOSE
    1. Slide the clip and disconnect the No. 2 radiator hose from the radiator assembly.

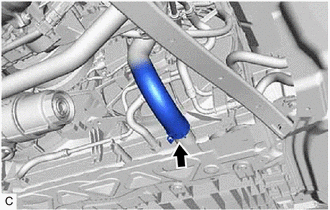

      GTY516214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT OIL COOLER TUBE
    1. Slide the 2 clips and disconnect the No. 3 transmission oil cooler hose and No. 4 transmission oil cooler hose from the radiator assembly.

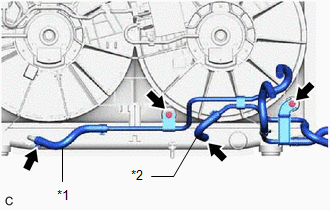

      GTY497276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Transmission Oil Cooler Hose
      *2 No. 4 Transmission Oil Cooler Hose
    2. Remove the 2 bolts and disconnect the oil cooler tube from the fan shroud assembly.
  16. DISCONNECT ENGINE ROOM MAIN WIRE
    1. Disconnect the 2 cooling fan ECU connectors.

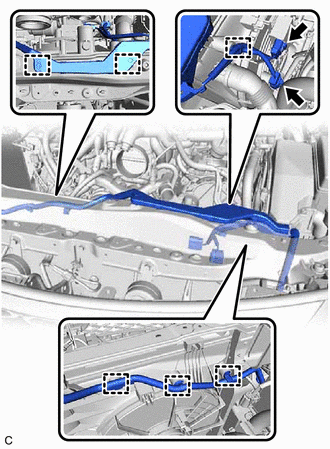

      GTY516213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 clamps and disconnect the engine room main wire from the upper radiator support.
  17. REMOVE UPPER RADIATOR SUPPORT

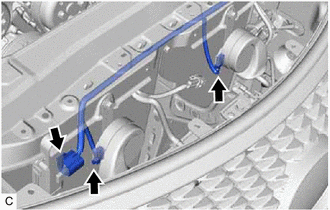

    GTY516211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 2 horn connectors and smog ventilation sensor connector.
    2. Disengage the 5 clamps.

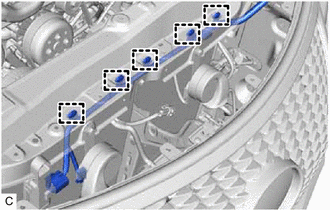

      GTY516212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 5 bolts and upper radiator support.

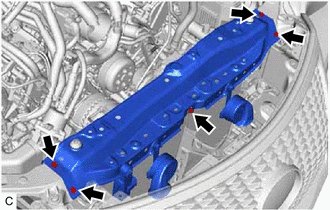

      GTY516208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. SEPARATE COOLER CONDENSER ASSEMBLY
    1. Disengage the 2 claws.

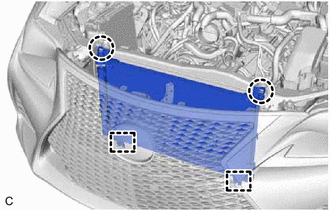

      GTY521614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and separate the cooler condenser assembly from the radiator assembly.
      NOTE:

      Do not damage the cooler condenser assembly or radiator assembly when separating the cooler condenser assembly.

  19. REMOVE ENGINE ROOM ECU OUTLET DUCT

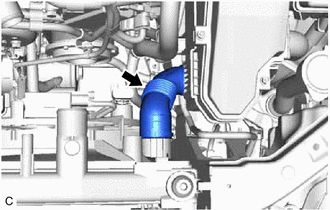

    GTY516209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the engine room ECU outlet duct from the fan shroud assembly.
  20. REMOVE RADIATOR ASSEMBLY
    1. Remove the radiator assembly with the fan shroud assembly from the vehicle.
      NOTE:

      Do not apply excessive force to the cooler condenser assembly or pipe when removing the radiator assembly.

    2. Disengage the 3 claws.

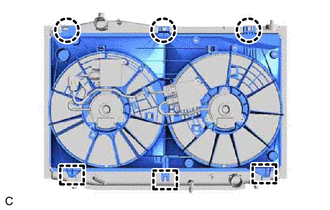

      GTY517984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 guides and remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.

  21. REMOVE RADIATOR SUPPORT CUSHION
    1. Remove the 2 radiator support cushions from the radiator assembly.
  22. REMOVE LOWER RADIATOR SUPPORT
    1. Remove the 2 lower radiator supports from the radiator assembly.
