Installation [09/2014 - ]: Procedure

  1. INSTALL ENGINE WATER PUMP ASSEMBLY
    1. Install a new water pump gasket and the engine water pump assembly with the 9 bolts.

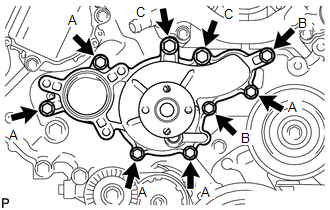

      GTY518884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A)

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

      Bolt (B)

      Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)

      Bolt (C)

      Torque: 47 N.m (479 kgf/cm, 35 ft.lbf)

  2. INSTALL WATER PUMP PULLEY
    1. Temporarily install the water pump pulley with the 4 bolts.
    2. Using a screwdriver or equivalent, hold the water pump pulley and tighten the 4 bolts.

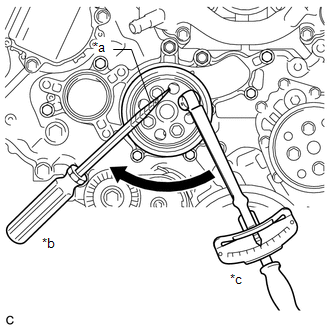

      GTY513617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Hold
      *c Turn

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

      HINT:

      Tape the screwdriver tip before use.

  3. INSTALL WATER INLET HOUSING
    1. Install the water inlet housing to the No. 3 water by-pass hose and slide the clip to secure it.
    2. Install the water inlet hose to the water inlet housing and front water by-pass joint and slide the 2 clips to secure it.
    3. Install a new No. 1 water inlet housing gasket to the engine water pump assembly.
    4. Install the water inlet housing to the engine water pump assembly with the 3 bolts.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

      NOTE:

      Be careful not to allow the No. 1 water inlet housing gasket to get caught between the parts.

    5. Connect the No. 5 water by-pass hose to the water inlet housing and slide the clip to secure it.
    6. Connect the wire harness clamp bracket to the water inlet housing with the bolt.

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  4. CONNECT NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 58 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 58 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 58 [03/2019 - ]

  5. INSTALL V-RIBBED BELT

    Refer to INSTALLATION [09/2014 - ]

  6. INSTALL RADIATOR RESERVE TANK ASSEMBLY

    See step  11 [09/2014 - 11/2017], or see step  11 [11/2017 - ]

  7. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 2 [10/2015 - ]

  8. CONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 3 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 3 [10/2015 - ]

  9. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 96 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 97 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 96 [03/2019 - ]

  10. ADD ENGINE COOLANT

    See step  4

  11. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  12. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 2 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 2 [03/2019 - 01/2023] , or refer to PROCEDURE - Step 2 [01/2023 - ]

  13. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 94 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 95 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 94 [03/2019 - ]
