Components [09/2014 - ]

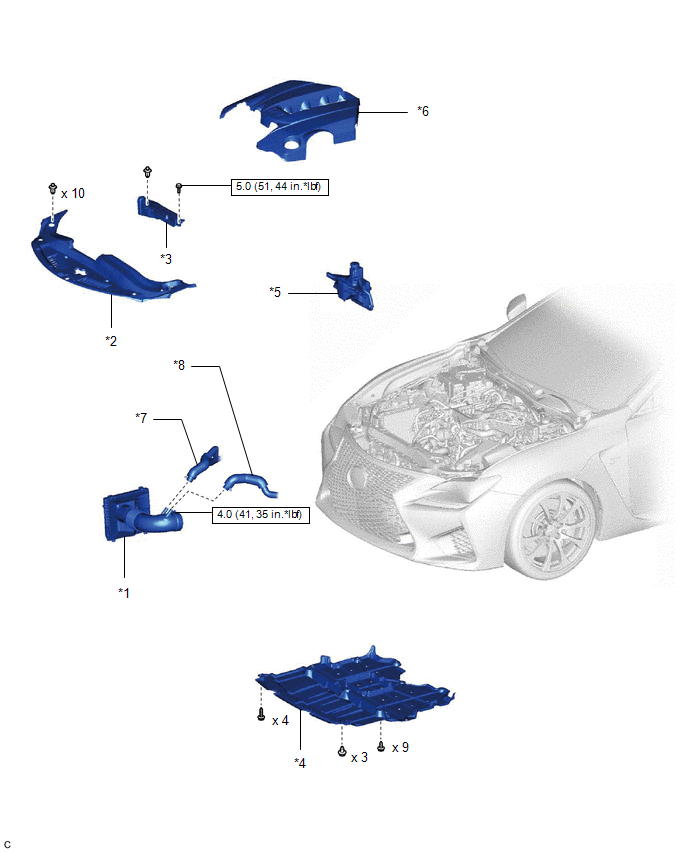

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	COOL AIR INTAKE DUCT SEAL
*3	INLET NO. 1 AIR CLEANER	*4	NO. 1 ENGINE UNDER COVER ASSEMBLY
*5	RADIATOR RESERVE TANK ASSEMBLY	*6	V-BANK COVER SUB-ASSEMBLY
*7	NO. 2 VENTILATION HOSE	*8	NO. 3 VENTILATION HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

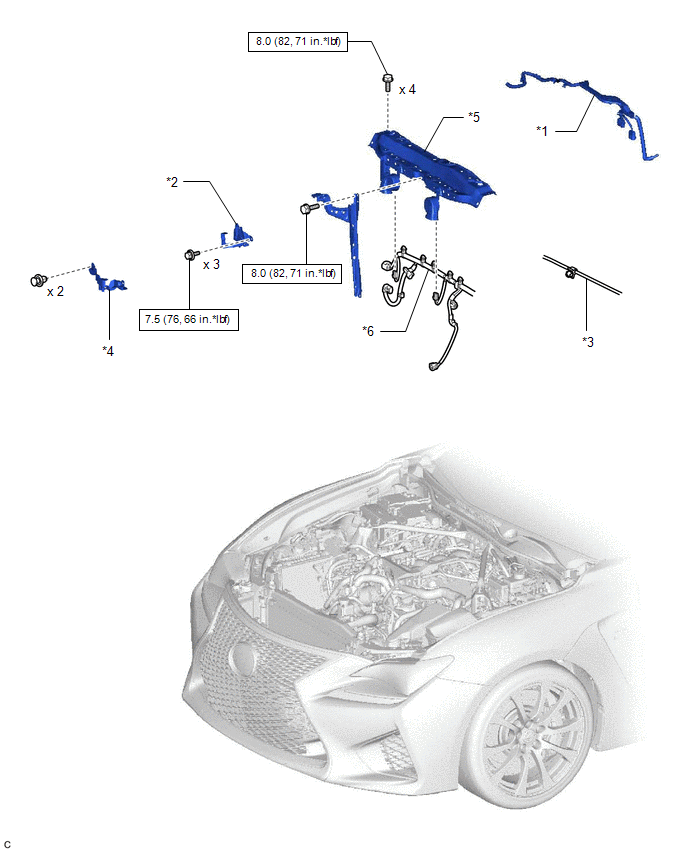

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE ROOM MAIN WIRE	*2	HOOD LOCK ASSEMBLY
*3	HOOD LOCK CONTROL CABLE ASSEMBLY	*4	HOOD LOCK RELEASE LEVER PROTECTOR
*5	UPPER RADIATOR SUPPORT	*6	WIRE HARNESS
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

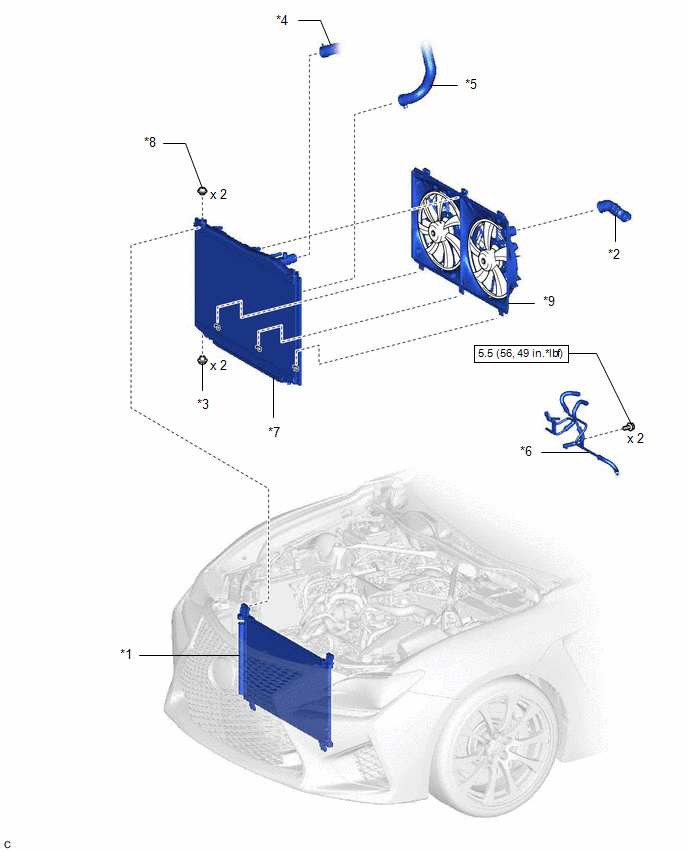

Fig 3: Radiator Replacement Components With Torque Specifications (3 Of 3)

*1	COOLER CONDENSER ASSEMBLY	*2	ENGINE ROOM ECU OUTLET DUCT
*3	LOWER RADIATOR SUPPORT	*4	NO. 1 RADIATOR HOSE
*5	NO. 2 RADIATOR HOSE	*6	OIL COOLER TUBE
*7	RADIATOR ASSEMBLY	*8	RADIATOR SUPPORT CUSHION
*9	FAN SHROUD ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
