Brake Control System - Service Information
>>
Yaw Rate And Acceleration Sensor
>>
Components [09/2014 - ]
Components [09/2014 - ]

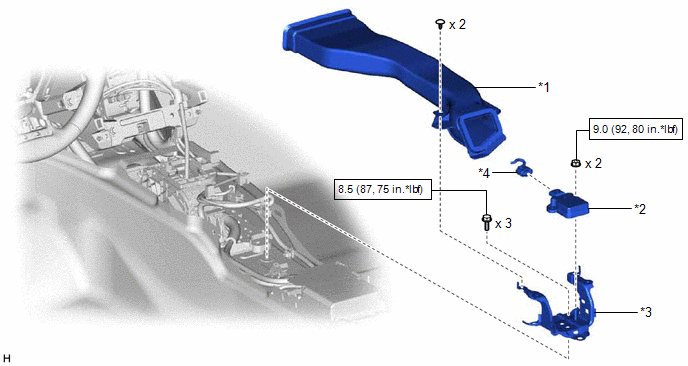

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 CONSOLE BOX DUCT
*2
YAW RATE SENSOR
*3
YAW RATE SENSOR BRACKET
*4
CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque
-
-
