Components [09/2014 - ]

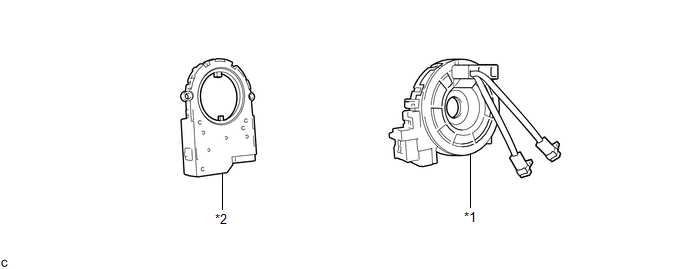

Fig 1: Steering Angle Sensor Replacement Components

GTY505123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

SPIRAL CABLE SUB-ASSEMBLY

*2

STEERING SENSOR
