Occupant Detection Sensor
>>
Components [09/2014 - ]
Components [09/2014 - ]

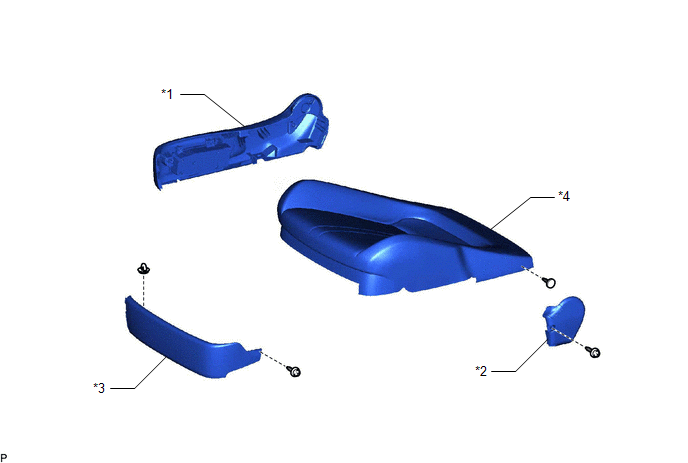

Fig 1: Occupant Detection Sensor Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT SEAT CUSHION SHIELD
*2
FRONT SEAT INNER CUSHION SHIELD
*3
INNER NO. 1 FRONT SEAT CUSHION SHIELD
*4
OCCUPANT DETECTION SENSOR (FRONT SEAT CUSHION PAD WITH COVER)
