Components [09/2014 - ]

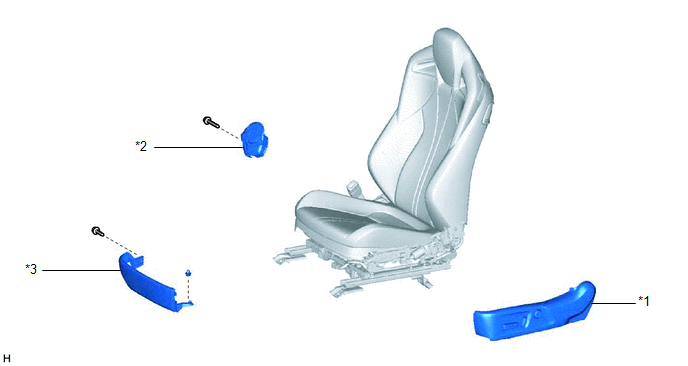

Fig 1: Limit Switch Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SEAT CUSHION SHIELD	*2	FRONT SEAT INNER CUSHION SHIELD
*3	INNER NO. 1 FRONT SEAT CUSHION SHIELD	-	-

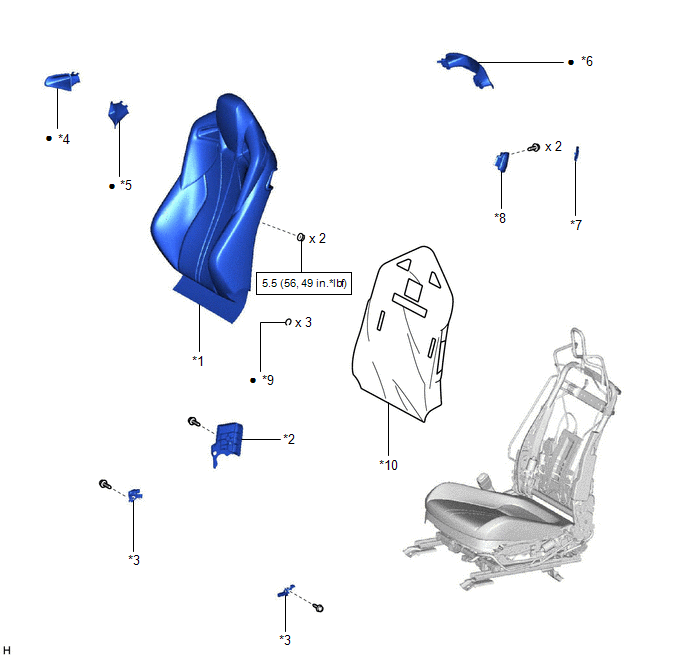

Fig 2: Limit Switch Replacement Components With Torque Specifications (2 Of 2)

*1	FRONT SEATBACK PAD WITH COVER	*2	LH SEAT RECLINING ADJUSTER INSIDE COVER RH
*3	LIMIT SWITCH ASSEMBLY	*4	NO. 1 FRONT SEAT SHOULDER BELT GUIDE
*5	NO. 2 FRONT SEAT SHOULDER BELT GUIDE	*6	NO. 3 FRONT SEAT SHOULDER BELT GUIDE
*7	RECLINING REMOTE CONTROL CAP	*8	RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY
*9	HOG RING	*10	FRONT SEATBACK EDGE PROTECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
