Installation [01/2023 - ]: Procedure

INSTALL MULTI-DISPLAY ASSEMBLY
INSTALL NO. 1 MULTI-DISPLAY BRACKET
1. for 8 Inch Display:
  1. Install the No. 1 multi-display bracket with the 6 screws.
2. for 10.3 Inch Display:
  1. Install the No. 1 multi-display bracket with the 3 screws.

INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET

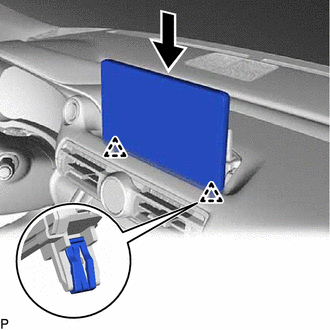

Engage the 2 clips as shown in the illustration.

GTY970827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the multi-display assembly with bracket with the 2 bolts.
Engage the clamp.
Connect each connector.

INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)
Refer to PROCEDURE - Step 13
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 10.3 Inch Display)
Refer to PROCEDURE - Step 14
