Disassembly [11/2017 - 01/2023]: Procedure

REMOVE FRONT ESCUTCHEON (for 10.3 Inch Display)

Remove the insulator.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 5 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Make sure to place the multi-display on a clean piece of cloth when performing this step.

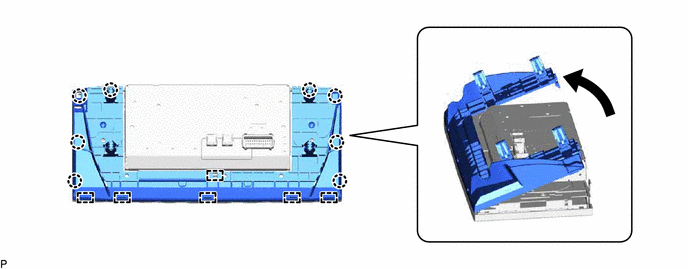

Disengage the 8 claws and 6 guides as shown in the illustration to remove the rear escutcheon.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

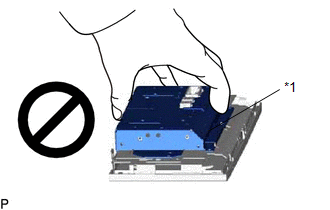

If the rear escutcheon is removed, the rear cover can easily be separated from the LCD panel. Do not separate the rear cover from the LCD panel.

*1	Rear Cover

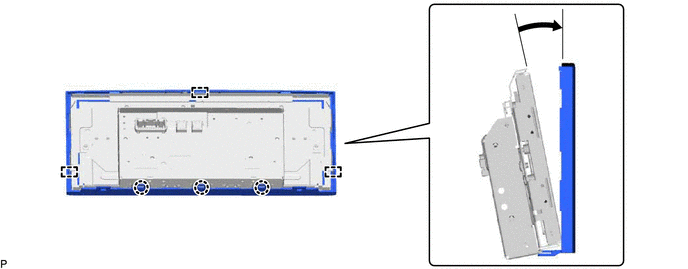

Disengage the 3 guides and 3 claws as shown in the illustration to remove the front escutcheon.

NOTE:

Do not damage the LCD panel.
If there are any fingerprints or foreign matter on the display portion of the LCD panel, wipe them off with a soft cloth.
