Components [09/2014 - 11/2017]
Components [09/2014 - 11/2017]

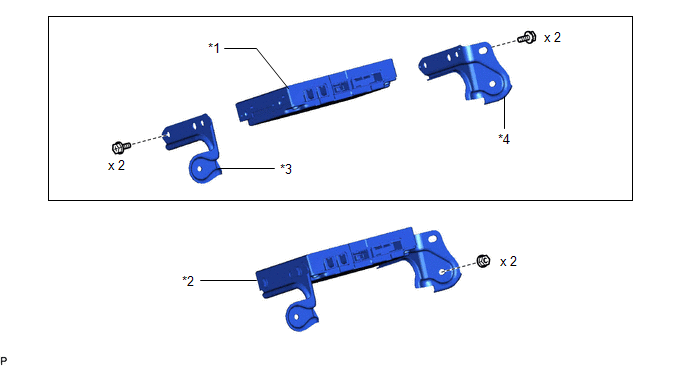

Fig 1: DCM (Telematics Transceiver) Replacement Components [09/2014 - 11/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
DCM (TELEMATICS TRANSCEIVER) ASSEMBLY
*2
DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
*3
NO. 1 DCM (TELEMATICS TRANSCEIVER) BRACKET
*4
NO. 2 DCM (TELEMATICS TRANSCEIVER) BRACKET
