Removal [01/2023 - ]: Procedure

REMOVE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [01/2023 - ]

REMOVE FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTE:

Do not touch the inner surface of the forward recognition with heater hood sub-assembly.
Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

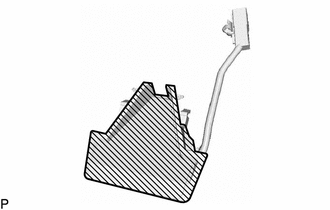

Inner Surface of Forward Recognition with Heater Hood Sub-assembly

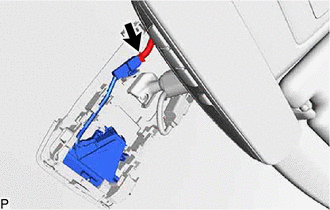

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not pull the harness forcibly when disconnecting the connector.

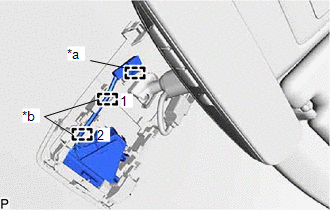

Disengage the connector clamp.

*a	Connector Clamp
*b	Wire Harness Clamp

Disengage the 2 wire harness clamps in the order shown in the illustration.
NOTE:
Do not forcibly pull the wire harness as it may become damaged.

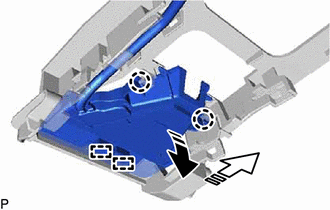

Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.

	Remove in this Direction (1)
	Remove in this Direction (2)

Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the forward recognition with heater hood sub-assembly.
