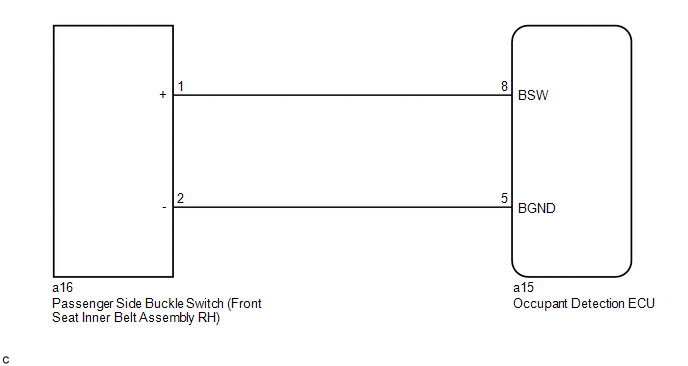

DTC B1771: Passenger Side Buckle Switch Circuit Malfunction [09/2014 - 03/2019]: Wiring Diagram

GTY519582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
