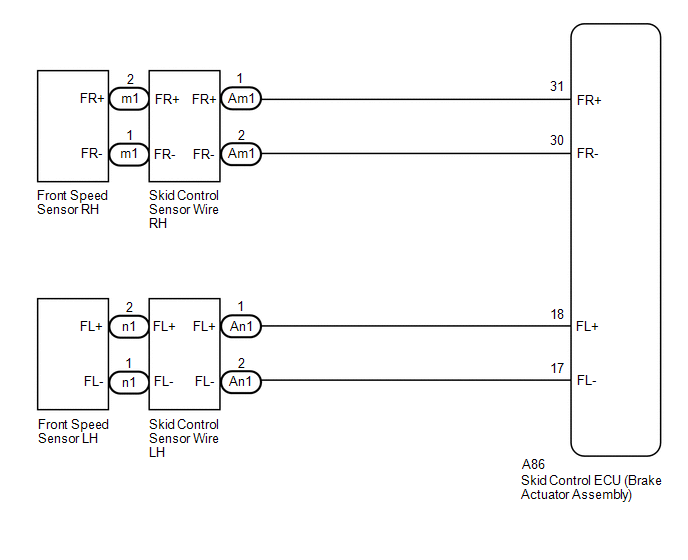

DTC C1413: Front Speed Sensor RH Circuit Output; DTC C1414: Front Speed Sensor LH Circuit Output [11/2017 - 03/2019]: Wiring Diagram

GTY827264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
