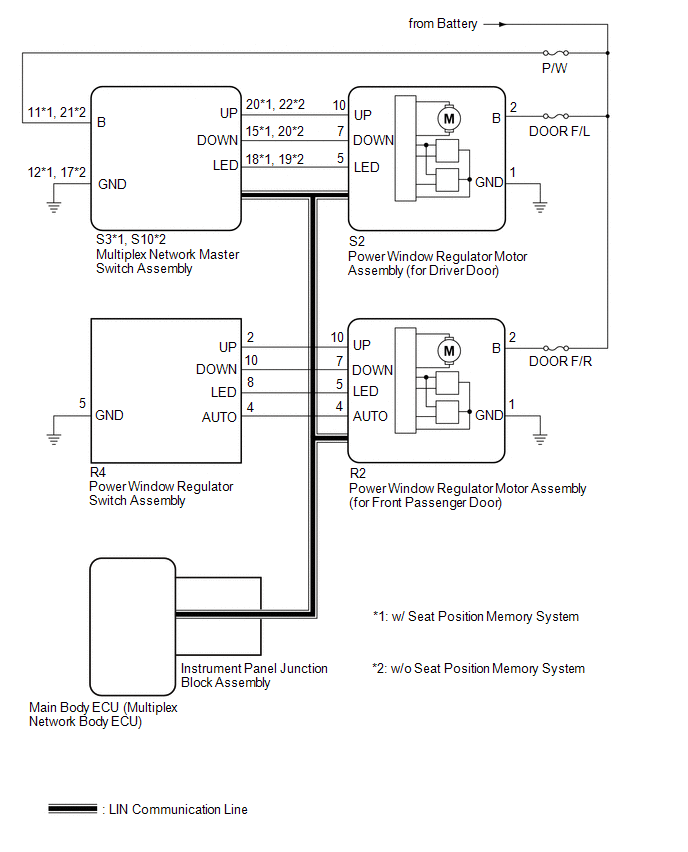

DTC B2312: Power Window Switch Malfunction [09/2014 - ]: Wiring Diagram

GTY496626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
